Hydraulic Cutting Photovoltaic bracket Roll Forming Machine Custom Color 41x41x2mm

1. Our Company Introduction

Our machine can produce the Photovoltaic bracket ,roof panel, wall panel ,sandwich panel , floor deck panel, decoration buckles, light-gauge steel joists, shelf columns, door frame parts and other profiled accessories. It has the advantages such as high production efficiency, stable product sizes, less investments, etc.

Company according to the different industry use produce the different profiled accessory roll forming machines. It is widely used in the areas such as construction decorations, doors manufacturing, shelf fabrication, logistics, etc.

our factory is manufacturing high quality storage rack roll forming machines, and exported to the foreign countries such as Lebanon, Iran, Jordan, France, United Kingdom,Australia, Malaysia, Indonesia, Vietnam, Thailand, Russia, Saudi Arabia, Singapore, etc.

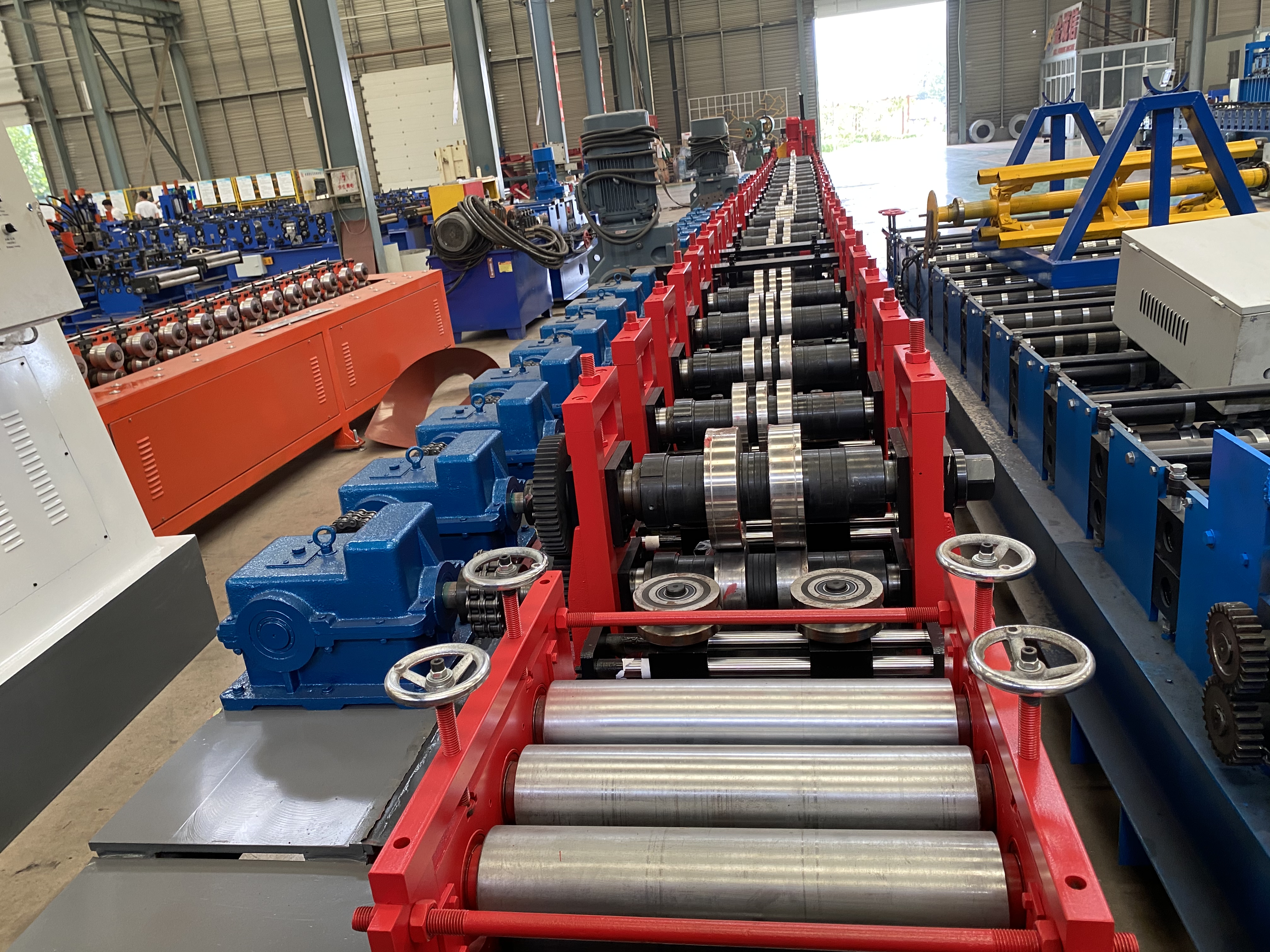

2. Machine picture of solar panel support roll forming machine

3. Profile drawing of solar panel support roll forming machine

4. Supplying components of complete machine

NO.	Description	Quantity (set)	Remark
1	Manual Decoiler 3 Ton	1
2	Guiding device	1	One complete unit as main machine
3	Forming system	1
4	Transmission system	1
5	Flying Saw Cut	1
6	Support table	2
7	Hydraulic station	1
8	Control box	1
9	Spare parts and tools	1	As attaching list
10	Servo motor punching machine	1

5. Detailed Images of solar panel support roll forming machine

Weight	About 12 tons
Size	About 15*1.2*1.2m(length x width x height)
Color	Main color: blue or as your requirement
	Warning color: yellow
Material	zinc magnesium aluminum, galvanized sheet ,black belt
Thickness	2.0 mm
Yield Strength	235Mpa
Quantity of forming rollers stations	18
Diameter of forming rollers shafts	80mm
Roll Forming Speed	15-23m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	Cr12MoV steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: double 15kw hydraulic motor
Electric voltage	According to customer’s requirement

6.Packing and delivery

7. Our service

A. Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day

B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services

Life time services to every customer.

.

Botou Golden Integrity Roll Forming Machine Factory is located in "the town of casting molds", enjoying convenient and highly effective transportation for being close to Tianjin Port, No.104 National Way, No.106 National Way and Jingjiu Railway.

Our technical force is abundant. Production equipment is advanced, detection means is complete. We specialize in the professional production of various types of roll forming machines, and the development and production of fully automatic intelligent control roll forming machines of C-shaped steel and dust collector anode plates, and other equipment.

On the basis of traditional roll forming machines, we also develop new computer fully automatic roll forming machines, roof and wall panel forming machines, glazed tile forming machines, floor bearing plate forming machines, high-speed barrier devices, double color steel tile molding machines, C and Z steel machines, arch appliances, sandwich composite plate machines, shearing machines, bending machines, and heat insulation sandwich composite machines. Our products have reached the advanced level in the same industry. As beautiful appearance, reasonable structure, and tile-based standards of our products, they are popular among new and old customers. Products are sold to domestic enterprises.

Our factory has highly qualified and experienced professionals and highly skilled construction workers to serve you. Our factory can design and produce various kinds of special-shaped cold-formed molding equipment for different needs of the users.

You are welcome to contact us for more information.
