    Steel construction glazed tiles manufacturing machine color steel 0.3-0.8mm automatic

    Ask Lasest Price
    Brand Name : JCX
    Model Number : glazed tile forming machine
    Certification : CE ISO
    Price : USD11000-USD16000 PER SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Steel construction glazed tiles manufacturing machine color steel 0.3-0.8mm automatic

    Steel construction glazed tiles manufacturing machine color steel 0.3-0.8mm automatic


    1. Description of glazed tile roll forming machine:


    This machine is designed by our professionals utilizing high-grade components, in compliance with international standards to meet your demands. Our machine is rigorously tested on various parameters before supplying to our all clients. This machine can be availed in various specifications and can be customized as per the needs of the clients.


    2. Technical details of glazed tilel roll forming machine:


    Machine Specifications
    WeightAbout 5tons
    SizeAbout 1.5m*1.5m*1.3m(length x width x height)
    ColorMain color: blue or as your requirement
    Warning color: your requirement
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness0.3-0.8mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations18
    Diameter of forming rollers shafts70mm
    Roll Forming Speed3-5m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 5kw
    Hydraulic unit motor power: 4kw
    Electric voltageAccording to your request

    3. Main components of roof panel roll forming machine


    Decoiler1 Set
    Guiding Equipment1 Set
    Roll Forming Unit1 Set
    Post Cutting Unit1 Set
    Hydraulic Station1 Set
    PLC Control System1 Set
    Reveiving Table1 Set

    4. Production Flows


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)


    5. Advantages

    ​​

    • We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
    • we have 5 professional designers to design molding solutions
    • about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
    • the machine produce the finished sheet is very beautiful
    • Our factory has more than 20000 squre meters, we can ensure the delivery time.

    6. Application


    This machine is widely used in the production of the roof wall steel construction and so on.

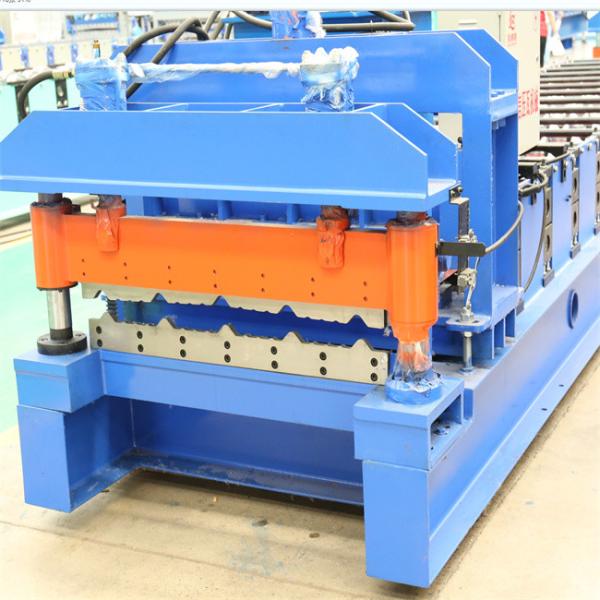

    7. Product photo


    Steel construction glazed tiles manufacturing machine color steel 0.3-0.8mm automatic


    Steel construction glazed tiles manufacturing machine color steel 0.3-0.8mm automatic


    Steel construction glazed tiles manufacturing machine color steel 0.3-0.8mm automatic


    8. FAQ


    Q: Are you a trading company or a factory?
    A: We are factory with more than 25 years experience.

    Q: Can a machine produce only one style panel profile?
    A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.If you need ,please contact me.

    Q: How long does it take to manufacture the machine?
    A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

    Q: Is there quality control when producing the production line?
    A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

    Q: What can you do if the machine broken?
    A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

    Q: What is your strength compared to other suppliers?
    A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

    Q: Can we become your agent abroad?
    A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.


    Q:Do you have a designer to design my profile drawing?

    A:yes, or designers adopt European concepts, have 10 years of design experience, and are praised by our customers.


    Q:Do you have any other service?

    A: We manufacture, design, test the machine and lap the finished sheet.

    It is free to train your workers through many ways,including video call ,we can send our engineers to your factory, live broadcast broast


    Welcome to visit us!
