The most professional roll forming machine and light gauge steel framing roll forming machine manufacturer
3 Years
| Ask Lasest Price | |
| Brand Name : | JCX |
| Model Number : | galzed tile machine |
| Certification : | CE ISO |
| Price : | USD13000-USD18000 PER SET |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30 SETS PER MONTH |
| Delivery Time : | 30-45 working days |
Fully automatic metal Glazed Tile Roll Forming Machine for Building Roof
1. Description of glazed tile roll forming machine:
Thistype machine is a new-design type roof tile roll forming
machine that popular in all over the world, including uncoiler,
feeding plateform, roll forming section,shearing system, received
tabl, hydraulic station system, PLC system, etc
The common thicknessis 0.3-0.8mm to different profiles and
materials.
Our factory is manufacturing high quality glazed tile roll forming machine, and regularly exported to Australia, USA, Thailand, Canada, Colombia, Philippines, Malaysia, Zambia, Angola, Saudi Arabia ect.
2. Technical details of glazed tile machine:
| Machine Specifications | |
| Weight | About 4.5tons |
| Size | About 5000*800*1200mm(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 15 stations |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 3-5m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the roof sheet and wall sheet and others.

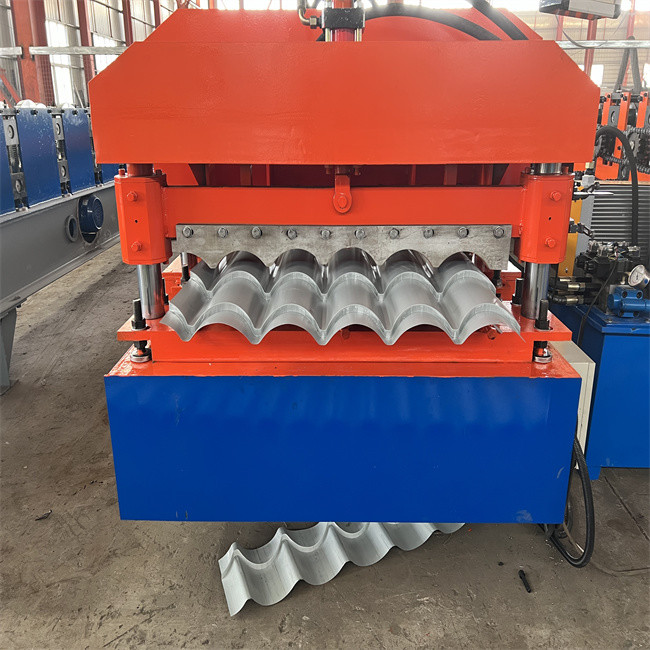

7. Product photo
8. FAQ
Q:Can you customized our profile?
A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q:What is your payment terms?
A:30% as the deposit by T/T in advance,70% T/T as balance after you inspect the machine before shipping.
We also accept 100% L/C at sight
We can accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you.
Q:When will you delivery thye machine after i place the order?
A: After we get down payment,we will arrange production.About 30-45 days for delivery.
Q:What will you do if the machine broken?
A:We provide 12 nonths free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair,we can send the new parts replace the broken parts freely.If it is beyond the warranty period,we can negotiable to solve theproblem,and we supply the technical support for the whole life of the machine
|
|
