    0.3-0.7mm Glazed Tile Roll Forming Machine PLC Step Tile Making Machine

    Fully automatic glazed tile cold roll forming machine step tile making machine


    1. Description of glazed tile roll forming machine:

    ​​

    The glazed tile roll forming machine is designed by our professionals desingers, in compliance with international standards to meet your demands.

    The machine consists of two parts: roll forming device and cutting part, the finished sheet is very beautiful.So If you are interest about how does the step tile roll forming machines working ,please contact me.
    The raw material can be color steel, aluminum plate, iron plate, widely used, easy operation of the machine, PLC setting length, more accurate length, more convenient installation.


    Color steel tile has the good characteristics, such as light weight, high strength, colorful, easy installation, anti-seismic, fire-proofing, rain-proof, long service life, maintenance free, etc. Now, it is widely popularized and used. This machine is suit for the production of various kinds of color steel tiles.


    Our factory is producing high quality color steel tile roll forming machines. Most of the machines were exported to Thailand, Singapore India, Vietnam, Iran, Russia, Ghana, Tanzania, etc.


    2. Technical details of glazed tilel roll forming machine:


    Machine Specifications
    Weight5tons
    Size5.5m*1.5m*1.3m(length x width x height)
    ColorMain color: blue or as your requirement
    Warning color: your requirement
    Suitable Raw Material
    MaterialGalvanized Steel Coils or PPGI
    Thickness0.3-0.7mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations13-16
    Diameter of forming rollers shafts70mm
    Roll Forming Speed3-5m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 5kw
    Hydraulic unit motor power: 4kw
    Electric voltageAccording to your request

    3. Main components of roof panel roll forming machine


    Decoiler1 Set
    Guiding Equipment1 Set
    Roll Forming Unit1 Set
    Post Cutting Unit1 Set
    Hydraulic Station1 Set
    PLC Control System1 Set
    Reveiving Table1 Set

    4. Production Flows


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)


    5. Advantages

    ​​

    • We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
    • we have 5 professional designers to design molding solutions
    • about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
    • We have professional technical team,they are development, mechanical assembly and precision parts processing.
    • Our company adopt Italian advanced automation control concept,we can ensure the machine quality.

    6. Application


    This machine is widely used in the production of the roof wall steel construction and so on.

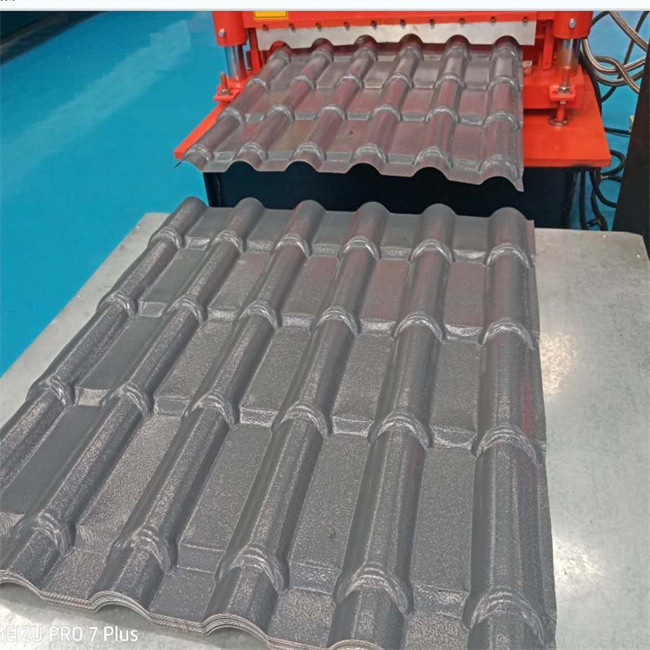

    7. Product photo

    0.3-0.7mm Glazed Tile Roll Forming Machine PLC Step Tile Making Machine


    8. FAQ


    Q: Are you a trading company or a factory?
    A: We are factory with more than 25 years experience.

    Q: Can a machine produce only one style panel profile?
    A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.If you need ,please contact me.

    Q: How long does it take to manufacture the machine?
    A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

    Q: Is there quality control when producing the production line?
    A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

    Q: What can you do if the machine broken?
    A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

    Q: What is your strength compared to other suppliers?
    A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

    Q: Can we become your agent abroad?
    A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.


    Q:Whats your machine PLC language have?

    A:Our Plc touch screen language can be customized, in this case ,it can effectively save your time and energy
