    3-5m/Min Steel Tile Roll Forming Machine 235Mpa Yield Strength

    Ask Lasest Price
    Brand Name : JCX
    Model Number : galzed tile machine
    Certification : CE ISO
    Price : USD13000-USD18000 PER SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : 30-45 working days
    • Product Details
    • Company Profile

    3-5m/Min Steel Tile Roll Forming Machine 235Mpa Yield Strength

    Steel automatic glazed tile roll forming machine roof sheet wall panel


    1. Description of glazed tile roll forming machine:


    This machine is convenient transportation, the finisehd sheet is beautifull,you can produce different varieties, specifications color steel roof tile, the user can easily select the products according to the market demand and avoid the market risks due to the single product.


    Our factory is manufacturing high quality glazed tile roll forming machine, and regularly exported to South Africa, Zambia, Rwanda, Dubai, Poland, Saudi Arabia, Israel, Philippines, Thailand, Canada


    2. Technical details of glazed tile machine:


    Machine Specifications
    WeightAbout 4.5tons
    SizeAbout 5000*800*1200mm(length x width x height)
    ColorMain color: blue or as your requirement
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness0.3-0.8mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations15 stations
    Diameter of forming rollers shafts80mm
    Roll Forming Speed3-5m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 4kw
    Hydraulic unit motor power: 3kw
    Electric voltageAccording to customer’s requirement

    3. Main components of glazed tile roll forming machine


    Decoiler1 Set
    Guiding Equipment1 Set
    Roll Forming Unit1 Set
    Post Cutting Unit1 Set
    Hydraulic Station1 Set
    PLC Control System1 Set
    Reveiving Table1 Set

    4. Production Flows


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)


    5. Advantages


    About the company:
    1. Our company has 25 years of production experience, which can guarantee the quality of the machine
    2. Our company has 5 warehouses, which store raw materials separately, and will not delay delivery
    3. Our company has professional after-sales service. If you don't know anything about the machine, you can find our after-sales service at any time.
    About the machine:
    1.CNC machine to produce the machine rollers, which can guarantee the quality of the machine wheels
    2. The large frame is produced by our company and will not be deformed
    3.Chain use 1.5 inch


    6. Application


    This machine is widely used in the production of the roof sheet and wall sheet and others.

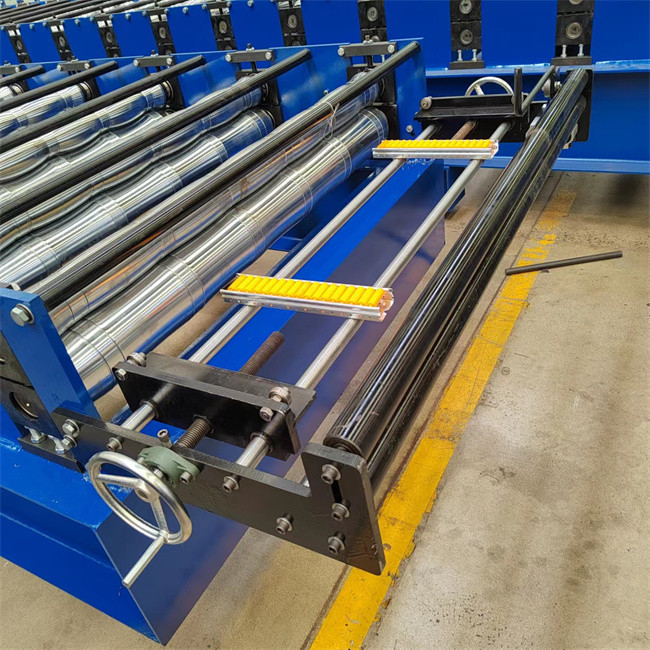

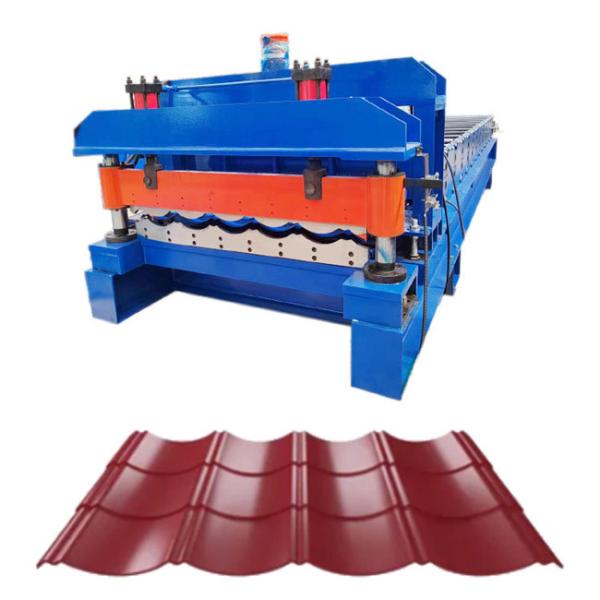

    7. Product photo

    3-5m/Min Steel Tile Roll Forming Machine 235Mpa Yield Strength


    3-5m/Min Steel Tile Roll Forming Machine 235Mpa Yield Strength


    3-5m/Min Steel Tile Roll Forming Machine 235Mpa Yield Strength


    8. FAQ


    Q:Can you customized our profile?

    A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.


    Q:How can I trust you that machines pasted testing running before shipping?

    A:1) We record the testing video for your reference. Or,

    2) We welcome you visit us and test machine by yourself in our factory.


    Q:What is your payment terms?

    A:30% as the deposit by T/T in advance,70% T/T as balance after you inspect the machine before shipping.

    We also accept 100% L/C at sight

    We can accept Western Union payments.

    Other payment terms you want to pay, please let me know and i will check and reply you.


    Q:When will you delivery thye machine after i place the order?

    A: After we get down payment,we will arrange production.About 30-45 days for delivery.


    Q:What will you do if the machine broken?

    A:We provide 12 nonths free warranty and free technical support for the whole life of any machine.

    If the broken parts can’t repair,we can send the new parts replace the broken parts freely.If it is beyond the warranty period,we can negotiable to solve theproblem,and we supply the technical support for the whole life of the machine

    Welcome to visit us!
