    380V Roll Forming Machine For Solar Structure Photovoltaic 41*41mm

    Ask Lasest Price
    Brand Name : JCX
    Model Number : Solar structure roll forming machine
    Certification : CE ISO
    Price : USD35000-USD45000 PER SET
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : about 30 working days
    • Product Details
    • Company Profile

    380V Roll Forming Machine For Solar Structure Photovoltaic 41*41mm

    Various size Photovoltaic solar panel roll forming machine for solar structure galvanized 41*41mm


    1. Description Of roll forming Machine for solar structure


    The solar structure usually made by metal coil via roll forming machine and formed into a open channel section with two lips that provide additional stiffness function.The solar will be made from different raw material thickness and many different length, it is controled by you.

    Solar structure Roll forming machine is producing solar structure,also named solar bracket, solar pv bracket, solar photovoltaic bracket.

    This machine also used for kinds of shelves,ceiling frames, drywall partition, steel structure building, ect.

    If you are interest in this solar structure roll forming machine, please contact me.

    2. Technical Details Of roll forming Machine for solar structure


    Machine Specifications
    WeightAbout 5tons
    SizeAbout 7m*0.6mm*1.3m(length x width x height)
    ColorMain color: Red or as your requirements
    Warning color: yellow
    Suitable Raw Material
    MaterialCold-rolled strip steel, galvanized sheet
    Thickness1.2mm-2.5mm
    Yield StrengthQ235-300
    Main Technical Parameters
    Quantity of forming rollers stations21 stations
    Diameter of forming rollers shafts70mm
    Roll Forming Speed20m-25m/min
    Forming rollers material

    Gcr15

    Cutter materialCr12MOV
    Controlling systemPLC
    Electric Power requirementMain motor power: 7.5kw+7.5KW
    Electric voltageAccording to customer’s requirement

    3. Main Components Of roll forming Machine for solar structure


    Manual Decoiler1 Set
    Feeding table1 Set

    Leveling part

    1 Set
    Roll Forming Unit1 Set
    Punching Unit1 Set
    Cutting device1 Set
    hydraulic system1 Set
    Receiving Table1 Set

    4. Production Flows Of roll forming Machine for solar structure


    3 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack


    5. Advantages Of roll forming Machine for solar structure


    • We have CE and ISO international certificates, the quality of the machine has been certified by the authority, and it meets the import standards of various countries for the machine
    • 5 professional designers design molding solutions for you
    • CNC machine to produce the machine rollers, which can guarantee the quality of the machine wheels
    • The large frame is produced by our company and will not be deformed

    6. Application Of The roll forming Machine for solar structure


    This machine is widely used in solar structure,kinds of shelves,ceiling frames, drywall partition, steel structure building, ect.

    Our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

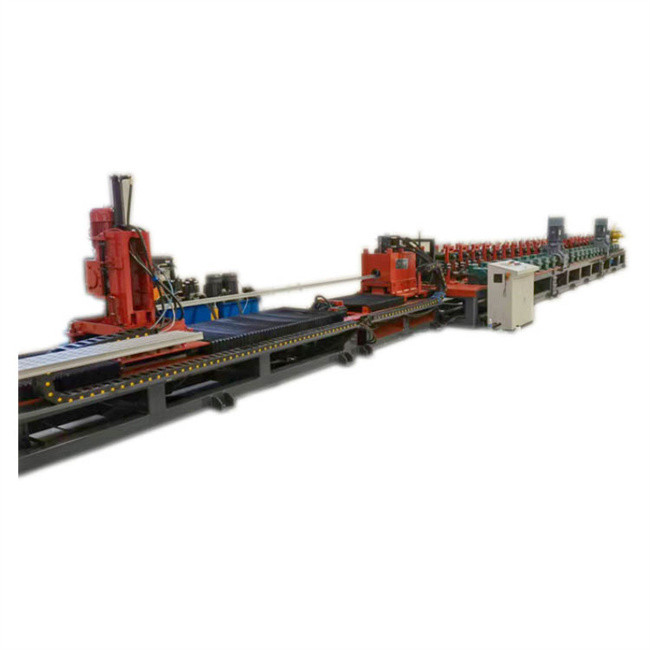

    7. Product photos Our roll forming Machine for solar structure

    380V Roll Forming Machine For Solar Structure Photovoltaic 41*41mm380V Roll Forming Machine For Solar Structure Photovoltaic 41*41mm


    Welcome to inquiry me.
