Color Steel Panel Standing Seam Roll Forming Machine PLC Control Full Automatic

Ask Lasest Price
Brand Name :	JCX
Model Number :	standing seam roll forming machine
Certification :	CE and ISO
Price :	according to your profile drawing we will offer you the best price
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30 SETS roll forming machine
Delivery Time :	20 working days

Add to Cart

Product Details
Company Profile

Color Steel Panel Standing Seam Roll Forming Machine PLC Control Full Automatic

Color Steel Panel Standing Seam Roll Forming Machine PLC Control Full Automatic

1.Application of Color Steel Panel Standing Seam Roll Forming Machine PLC Control Full Automatic:

This machine final products is the roofing panel ,we can build different size roof panel, it is very easy to operate and change size, it is very portable and easy operation Machine.

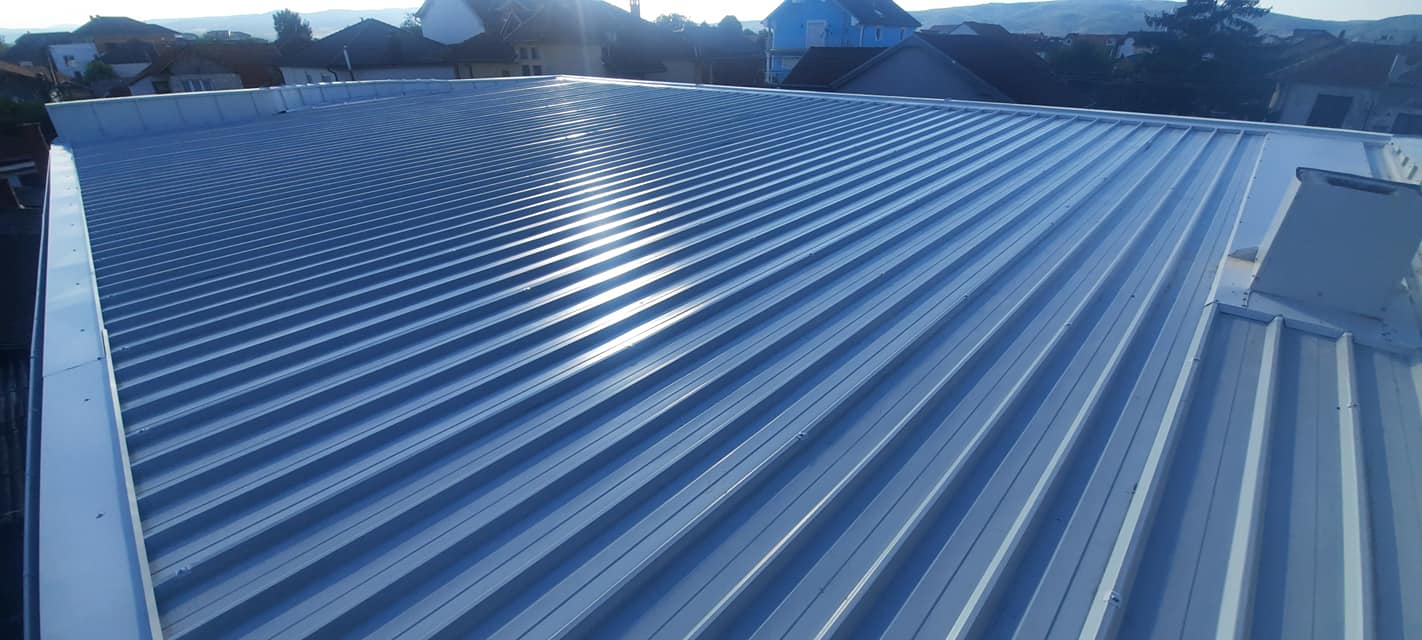

Color steel tile has the good characteristics, such as lightweight, high strength, colorful, easy installation, anti-seismic, fire-proofing, rain-proof, long service life, maintenance-free, etc. Now, it is widely popularized and used. This machine is suit for the production of various kinds of color steel tiles.

2.Main componets of Color Steel Panel Standing Seam Roll Forming Machine PLC Control Full Automatic:

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Main Machine for roll forming	set	1
3	Cutting System	set	1
4	Output Table	set	1
5	Control System(PLC)	set	1
6	hydraulic station	set	1

3.Machine picture of Color Steel Panel Standing Seam Roll Forming Machine PLC Control Full Automatic:

4.Machine specification of Color Steel Panel Standing Seam Roll Forming Machine PLC Control Full Automatic

Machine Specifications
WeightAbout 3.5tons
SizeAbout5.2*1.15*1.35m(length x width x height)
ColorMain color: blue or as your requirement
MaterialPPGI
Thickness0.3-0.7 mm
Yield Strength235Mpa
Quantity of forming rollers stations16
Diameter of forming rollers shafts60mm
Roll Forming Speed10-20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCr12 steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 4kw

5.Packing and loading


6.Certification



7.FAQ
Q:1.Can one machine only produce one size?
A:Not exactly, it depends on the machine.
Q:2. Do you have after-sales support?
A:Yes, we are happy to give advice and also have skilled
technicians available to maintain the machine if needed.
Q:3. How to visit your company?
A:We can pick you up from Shanghai or Hangzhou airport. Or railway
station Shaoxing North.
Q:4. What can you do if the machine is broken?
A: Our machine's warranty period is 12months. if the broken parts
can't repair, we can send the new parts to replace the broken
parts, but you need to pay the express cost by yourself. if after
the warranty period, we can through negotiation for solving the
problems, and we supply the technical support for the whole life of
the equipment.
Q:5.Can you be responsible for transport?
A:Yes, please tell us the destination port or address. we have rich
experience in transport.
Q:6.You are a trade company or factory?
A:We are a Manufacturer.
Q:7. Why your price is higher than others?
A:As we persist on that each factory should put quality in the
first place. We spend time and money on developing how to make
machines much more automatic, accurate, and high quality. We can
make sure that our machine could use more than 20 years without any problem.
Q:8. Do you have overseas engineers?
A:Yes, we not only provide overseas engineers but also provide
technical training.
Q:9. Do you provide customized?
A:Sure, we can design the equipment according to the data of the
structural section you provide. We are a professional sheet metal
forming machine designer and manufacturer
