    Adjustment Size 80-300mm C Channel Forming Machine For Steel Structure

    Adjustment Size 80-300mm C Channel Purlin Roll Forming Machine For Steel Structure


    1. Description of CZ purlin roll forming machine:


    We are a manufacture of C purlin roll forming machine, C purlin used as horizontal or wall for structural support in buildings, steel buidling. This machine also called C purlin forming machine, c purlin making machinery, purlin roll forming machine, C purlin rolling forming machine, C channel forming machine, C purlin forming machine ,building construction C purlin ,automatic channel profile steel c purlin roll forming machine,building material c purlin forming machinery.


    C purlin machine roll former is the most common machine in building area. It is widely used for the roof and cladding support and fixing. We designed and developed the new type C purlin cold forming machine which have much better performance . The length and height can be adjusted automatic by the PLC control system. The valid material thickness, the width and the depth can be adjusted easily.


    The forming process are mainly including:

    Decoilel--- feeding guide ---leveling and straighten---hydraulic hole punching---hydraulic cutting ---roll forming---rectify
    rollers---output table .


    2. Technical details of CZ purlin roll forming machine:


    Machine Specifications
    WeightAbout 9 tons
    SizeAbout 10mx1.1mx1.7m(length x width x height)
    ColorMain color: blue or as your requirement
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness1-3mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations18
    Diameter of forming rollers shafts80mm
    Roll Forming Speed20-30m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 22kw
    Hydraulic unit motor power: 22kw
    Electric voltageAccording to customer’s requirement

    3. Main components of CZ purlin roll forming machine


    Decoiler1 Set
    Guiding Equipment1 Set
    Roll Forming Unit1 Set
    Post Cutting Unit1 Set
    Hydraulic Station1 Set
    PLC Control System1 Set
    Reveiving Table1 Set
    Punching device2 Set or according to your request

    4. CZ purlin roll forming machine Production Flows


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)


    5. CZ purlin roll forming machine Advantages


    · Our design team use Germany COPRA software design


    · Our factory have 5 engineers with more than 20 years experience


    · We have 30 professional technician


    · 20 sets advanced CNC production lines on site,these CNC machine is used for machine rollers process.


    · Passionate Team


    · Installation engineers can reach your factory within 6 days, if you need our engineers, please contact me in adwance.


    · 12 month years maintenance and whole life technical support


    6. CZ purlin roll forming machine Application


    This machine is widely used in the production of the horizontal or wall for structural support in buildings, steel buidling.

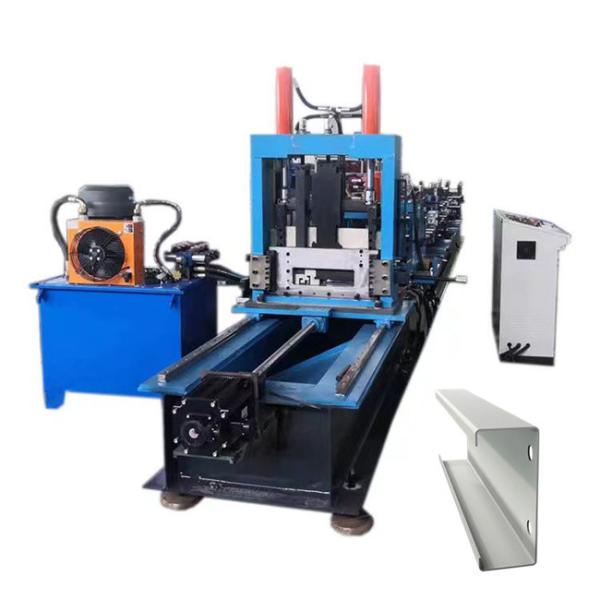

    7. CZ purlin roll forming machine Product photo


    Adjustment Size 80-300mm C Channel Forming Machine For Steel StructureAdjustment Size 80-300mm C Channel Forming Machine For Steel Structure


    8. FAQ


    Q. Will i receive a good machine ? Same with my wanted ?

    A: Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.


    Q. What is the machine minimum quantity?

    A: One machine is okay.


    Q. What is your payment terms?

    A: 1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.

    2 : We accept 100% L/C at sight

    3: We accept Western Union payments.

    4 : Other payment terms you want to pay, please let me know and i will check and reply you.
