    Construction Standing Seam Roll Forming Machine 15M/min Stand And Seam Machine

    Ask Lasest Price
    Brand Name : JCX
    Model Number : 485 Standing Seam Roll Forming Machine
    Certification : CE ISO
    Price : USD8000-USD13000 PER SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : 30-40 working days
    • Product Details
    • Company Profile

    Construction Standing Seam Roll Forming Machine 15M/min Stand And Seam Machine

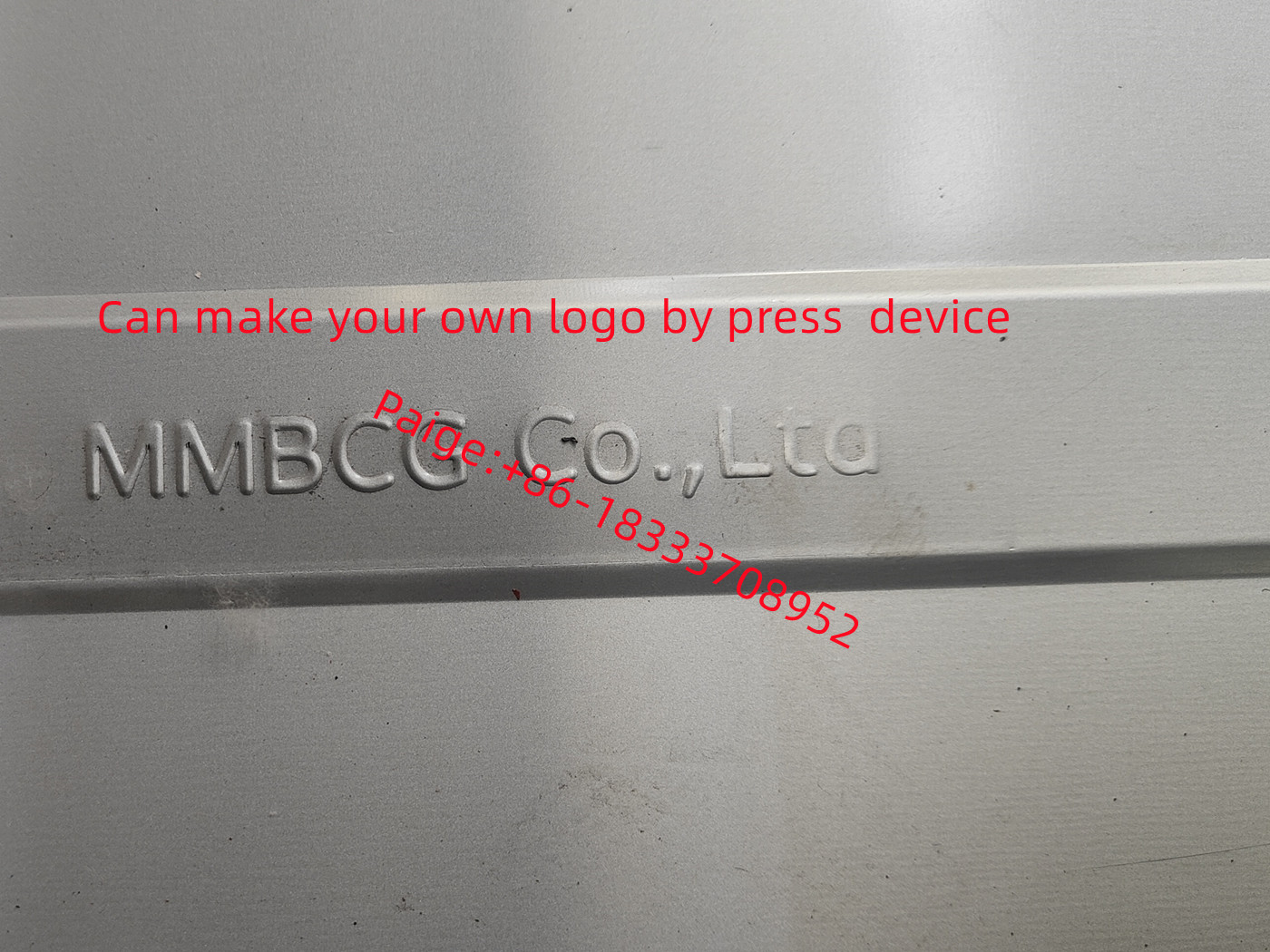

    Portable Standing Seam Roofing Machine Portable Standing Seam Roll Former With Logo Making


    Specifications
    1. Controller: PLC by Delta
    2. Import components
    3.12 months warranty
    4. Factory in Hebei


    Finished standing seam roof panel:

    1. Profile drawig:


    2. Technical details of standing seam roof panel roll forming machine:

    ItemParameter
    Main frame system350H steel welded
    Machine Type18mm side panel welded
    Forming SpeedAbout 0-18m/min
    Forming station17-20groups
    Main Forming Power5.5 KW
    Pump Station Power4KW
    Cutting TypeHydraulic cutting
    Diameter of shaft70-80 mm solid, 45# steel with grinding process
    Rollers45#steel with heat treatment and hard chrome coating 0.04-0.05
    Cutting BladeCr12Mov with hard treatment, HRC52-68
    Control SystemDelta PLC, INVERTER, AND PLC. Encoder by Omron
    Measuring accuracyPrecision 3m +/-1mm,with Inverter( Delta Inverter)
    TransmissionBy single chain 1.2’
    CounterOmron from Japan
    LanguageChinese-English operation version
    Total WeightAbout 3,600 KGS
    Voltage380v, 50hz,3p or can be customized

    3. Production Flows of standing seam roof panel roll forming machine:


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)



    3. Advantages of standing seam roof panel roll forming machine:

    ​​

    • We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
    • we have 5 professional designers to design molding solutions
    • about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
    • the machine produce the finished sheet is very beautiful
    • Our PLC screen language can be customized according to your country.

    4. Product photos of standing seam roof panel roll forming machine:



    5. Application of the standing seam roof panel forming machine


    6. FAQ


    Q. How long can the machine be built?

    A: Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.


    Q. Why are your prices higher than others?

    A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.


    Q: Are you manufacture?

    Answer: Yes. we are real factory and have over 13 years export expearance.


    Welcome to visit us!
