JCX standing seam machine hot sales in Philippines portable snap lock standing seam machine
1. standing seam metal snap lock foofing panel making roll forming machine
what is standing Seam roof panel?
Standing seam metal roofing is defined as a concealed fastener metal panel system that features vertical legs and a broad, flat area between the two legs. It’s also described as having raised seams, or vertical legs, that rise above the level of the panel’s flat area. Standing seam systems can be used for either metal roofing or metal walls. The main idea to remember for standing seam systems is that the fastener is hidden, whether the panel is attached to the roof deck using a clip or is directly fastened to the decking material under the vertical leg using a fastener flange.
2. Technical details of standing seam metal snap lock foofing panel making roll forming machine
| Part details | Item Name | Specification |
| Material | Raw material | PPGI |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 8 rows |
| Shaft diameter | 45 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |
| Machine size | About 1.8×1.4×1 m | |
| Machine weight | About 1 ton | |
| Machine color | As customer' request | |
| Working speed | 10-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage | 230v/60HZ,3P or customize as customer' request | |
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 5 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
3. Main components of standing seam metal snap lock foofing panel making roll forming machine
| No. | Name | Qty |
| 1 | De-coiler | 1 Set |
| 2 | Roll Forming Machine | 1 Set |
| 3 | Hydraulic Cutting Device | 1 Set |
| 4 | PLC Control Box | 1 Set |
| 5 | Output table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the roof.

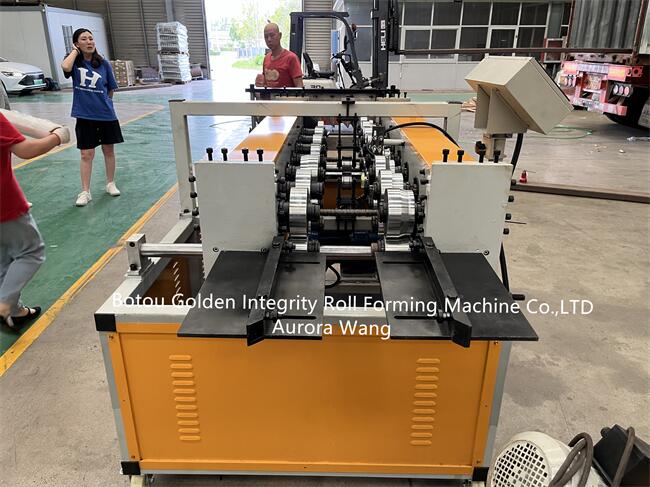

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to
Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South
America(10.00%),North America(5.00%),Eastern
Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central
America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western
Europe(2.00%),Southern Europe(00.00%). There are total about 51-100
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming
Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet
Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand
and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms:
FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express
Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash,Escrow;
Language
Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
|
|
