    4.5kw Rolling Shutter Slats Roll Forming Machine PLC Converter

    Ask Lasest Price
    Brand Name : JCX
    Model Number : roll forming machine
    Certification : CE
    Price : 10000
    Payment Terms : L/C, T/T
    Supply Ability : 1000
    Delivery Time : 45days
    • Product Details
    • Company Profile

    4.5kw Rolling Shutter Slats Roll Forming Machine PLC Converter

    Cangzhou Door Steel Frame Roll Forming Machine Factory Direct Selling Hot-selling Metal Steel Tile


    1. Description of shutter door roll forming machine:


    Galvanized steel roller shutter door is the most common roller shutter doors in the market, because it's strong and durable, offering high security at affordable cost.
    Consisted of solid interlockig galvanized steel slats, with steel end clips on both sides of curtain to prevent lateral movement, this type of door is designed and widely used for industrial, commercial, residential applications.

    Our roller shutter door roll forming machine making this galvanized steel roller shutter door very well, if you want to produce shutter door, please contact me.


    Our factory is manufacturing high quality shutter door roll forming machines, and regularly exported to Australia, USA, Thailand, Canada, Indonesia, Philippines, Malaysia, Angola, etc, Colombia, Rwanda, South Africa.


    2. Technical details of shutter door roll forming machine:


    Machine Specifications
    WeightAbout 3.5tons
    SizeAbout 5.6mx1.2mx1.3m(length x width x height)
    ColorMain color: blue or as your requirement
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized Steel Coils
    Thickness0.5-0.8mm or 0.8-1.5mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations11-12
    Diameter of forming rollers shafts60mm
    Roll Forming Speed15-20m/min
    Forming rollers materialNo.45 steel, coated with chromed treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: 4.5kw
    Hydraulic unit motor power: 3kw
    Electric voltageAccording to customer’s requirement

    3. Main components of shutter door roll forming machine


    Decoiler1 Set
    Guiding Equipment1 Set
    Roll Forming Unit1 Set
    Post Cutting Unit1 Set
    Hydraulic Station1 Set
    PLC Control System1 Set
    Reveiving Table1 Set

    4. Shutter door roll forming machine production Flows


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)


    5.Our factory advantages



    · Germany COPRA software design




    · 5 engineers with more than 20 years experience


    · 30 professional technician



    · 20 sets advanced CNC production lines on site




    · Passionate Team


    · Installation engineers can reach your factory within 6 days



    · 1.5 years maintenance and whole life technical support


    6. Shutter door roll forming machine Application



    This machine is widely used in the production of the door shutters.

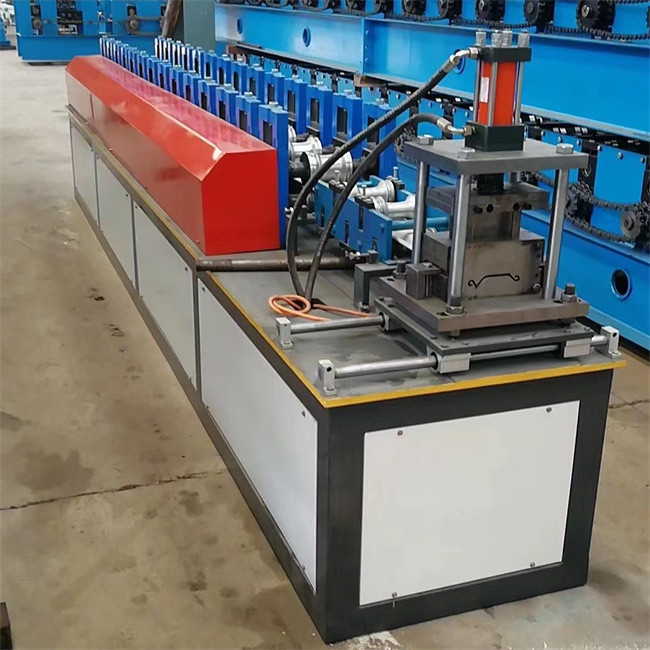

    7. Shutter door roll forming machine Product photo
    4.5kw Rolling Shutter Slats Roll Forming Machine PLC Converter4.5kw Rolling Shutter Slats Roll Forming Machine PLC Converter


    Welcome to inquiry.
