    Foaming Aluminum Door Slating Roller Shutter Machine PLC Detla System

    Ask Lasest Price
    Brand Name : JCX
    Model Number : Shutter Door Roll Forming Machine
    Certification : ISO9001 CE
    Price : USD8000-USD12500 PER SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Foaming Aluminum Door Slating Roller Shutter Machine PLC Detla System

    JCX hot sale rolling metal pu shutter door roll up slat roller former machine slating cold forming machine


    1. Description of shutter door roll forming machine:

    This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thus
    continuous automation production of foaming roller shutter door is achieved.

    2. Technical details of shutter door roll forming machine:


    Components
    Technical Parameters
    Quantity
    1
    Uncoiler
    1.Width: 100-300mm
    2.Speed: Based on the machine speed
    3. I.D: 460-508mm; O.D: 1350mm
    1 set
    2
    Roll Forming Machine
    1.Shaft: High quality 45# Steel with tempering treatment HB280
    2.Roller: GCR15 steel with quench treatment.
    3.Forming Station: 23-28 stations
    4.Forming Speed: 10-15m/min
    5.Motor Power: 7.5kw( subjected to final design)
    6.Transmission: Gear-box transmission
    7.Dimension of the Line: Approx. 26000mmX1500mmX1400mm
    8.Weight of the Line: Approx. 8T
    1 set
    3
    Foaming machine
    1.Type: Low Pressure Blowing Type
    2.Foaming Material: PU
    3.Power: 5KW
    4.Foaming Rate: 10 times in max
    5.Output: 120KG/Hour in max
    6.Screw Diameter: 6mm
    7.Dimension: Approx. 120x100x170 mm
    8.Weight: Approx. 300KG
    9. Clearing: by Solvent
    1 set
    4
    Fly Saw Cutting Device
    1.Material Of Cutting Mold: Cr12 steel with quenched treatment HRC 60-62
    2.Cutting Pressure: 12-16Mpa
    3.Cutting Power: 2KW (subjected to final design)
    4. Tolerance Of Cutting Length: +/-2mm
    1 set
    5
    Hydraulic Station
    1. Power: 4kw
    2. Solenoid Value: Beijing Huade
    2 sets
    7
    Collection Station
    1. Angle iron welded
    1 set

    3. Main components of shutter door roll forming machine


    No.NameQty
    1De-coiler1 Set
    2Roll Forming Machine1 Set
    3Hydraulic Cutting Devic1 Set
    4PLC Control Box1 Set
    5Output table1 Set

    4. Production Flows


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)



    5. Advantages


    · Germany COPRA software design


    · 5 engineers with more than 20 years experience


    · 30 professional technician


    · 20 sets advanced CNC production lines on site


    · Passionate Team


    · Installation engineers can reach your factory within 6 days


    · 1.5 years maintenance and whole life technical support


    6. Application


    This machine is widely used in the production of the ridge caps

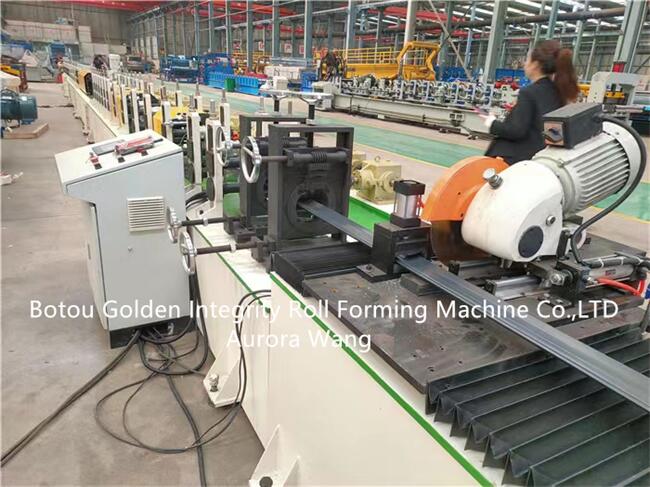

    7. Product photo



    8. FAQ


    1. who are we?
    We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

    4. why should you buy from us not from other suppliers?
    1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
