55/77 PU Foam Double Layer Shutter Door Slat Roll Forming Machine

PU foam rolling shutter slat profiles popular types : 37mm, 42mm, 55mm, 77mm, 98mm and 125mm etc,

and 55/77 are more popular types.

we are a manufacture of customize pu roller shutter door machine ,if you are interest,

please contact me, we provide you the best service.

1. Description of shutter door roll forming machine:

77 PU Foam Roller Shutter Door Roll Forming MachineThe complete European-style rolling door molding machine production line is made of manual inner support
unwinding system, feeding guide mechanism, forming roller table mechanism (including heating oven), PU foam
casting machine, PU curing and shaping roller table, flying saw tracking and cutting mechanism, all It is composed
of automatic industrial panel control system and finished product supporting device.

We have two types of machine:

1. Driving by chain, and by wall panel structure.
2. Driving by gearbox. and by hard column and cardon joint.

1. Technical details of shutter door roll forming machine:

2. Main components of shutter door roll forming machine

3. Production Flows

The machine devices have:

Uncoiler ----Roll forming part---- PU injection machine ----straight device----Pneumatic Punching---- Pneumatic cutting platform ---- Received table

4. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

5. Description of shutter door roll forming machine:

77 PU Foam Roller Shutter Door Roll Forming MachineThe complete European-style rolling door molding machine production line is made of manual inner support
unwinding system, feeding guide mechanism, forming roller table mechanism (including heating oven), PU foam
casting machine, PU curing and shaping roller table, flying saw tracking and cutting mechanism, all It is composed
of automatic industrial panel control system and finished product supporting device.

These are the popular PU rolling shutter slat profiles effective widths 37mm, 42mm, 55mm, 77mm, 98mm and 125mm etc, we are a manufacture of customize pu roller shutter door machine ,if you are interest, please contact me, we provide you the best service.

There are two different transmission and roll forming systems optional for a PU rolling shutter slat production line: economical type (chain-brackets transmission and conjoint-stands roll forming system) and upgraded type (gear-box & universal joint shafts transmission and separate-stands roll forming stands).

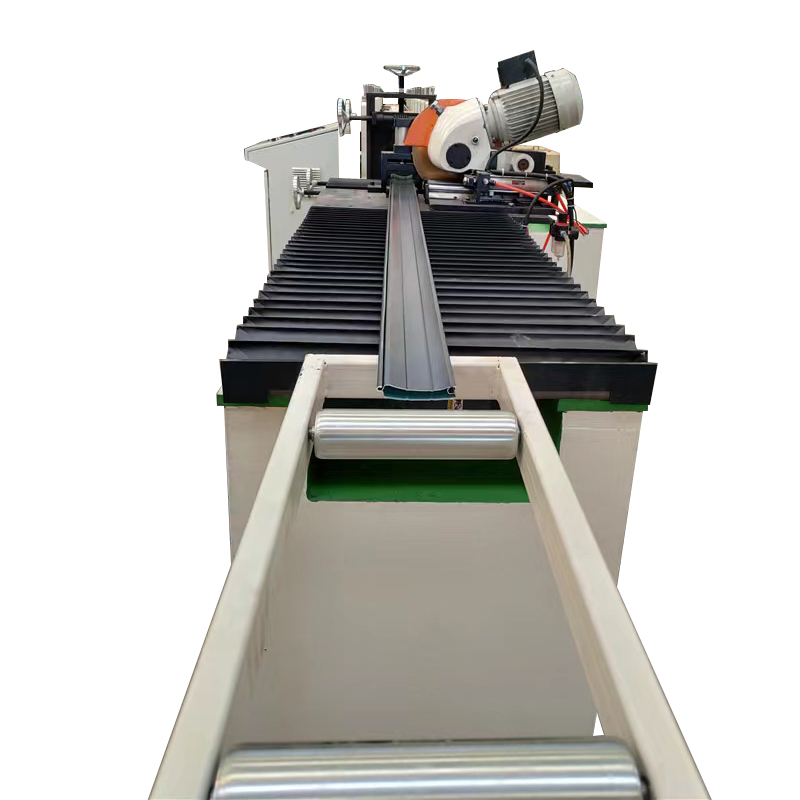

6. Shutter door roll forming machine Product photo

7. Application of Shutter door roll forming machine

This machine is widely used in the production of the door shutters.

8. FAQ

Q: Do you provide training for my workers?

A:Yes.Of course/

The machine has been installed and tested well before shipping. It is easy to operate.

Normally speaking, our customer follows the instruction book and can operate the machine well.?

You can also come to our factory to check the machine and learn how to operate before shipping.

Q: I do not know about the machine and do not know how to install it. Can you install the machine in my factory?

A: Yes.If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food, Salary of 1000 USD per day per person (from departure from our factory, until we are back to our factory

Welcome to inquiry.

Botou Golden Integrity Roll Forming Machine Factory is located in "the town of casting molds", enjoying convenient and highly effective transportation for being close to Tianjin Port, No.104 National Way, No.106 National Way and Jingjiu Railway.

Our technical force is abundant. Production equipment is advanced, detection means is complete. We specialize in the professional production of various types of roll forming machines, and the development and production of fully automatic intelligent control roll forming machines of C-shaped steel and dust collector anode plates, and other equipment.

On the basis of traditional roll forming machines, we also develop new computer fully automatic roll forming machines, roof and wall panel forming machines, glazed tile forming machines, floor bearing plate forming machines, high-speed barrier devices, double color steel tile molding machines, C and Z steel machines, arch appliances, sandwich composite plate machines, shearing machines, bending machines, and heat insulation sandwich composite machines. Our products have reached the advanced level in the same industry. As beautiful appearance, reasonable structure, and tile-based standards of our products, they are popular among new and old customers. Products are sold to domestic enterprises.

Our factory has highly qualified and experienced professionals and highly skilled construction workers to serve you. Our factory can design and produce various kinds of special-shaped cold-formed molding equipment for different needs of the users.
