oMEGA METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE

    Buy cheap oMEGA METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE from wholesalers

    Buy cheap oMEGA METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE from wholesalers
    • Buy cheap oMEGA METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE from wholesalers

    oMEGA METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE

    Ask Lasest Price
    Brand Name : JCX
    Model Number : Metal Stud And Track Roll Forming Machine
    Certification : CE/ISO
    Price : USD7499-USD11999 PER SET
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : about 40 working days
    • Product Details
    • Company Profile

    oMEGA METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE

    OMEGA PROFILE METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE


    1. Description Of Omega profile metal drywall profile steel channel roll forming machine


    Our Omega Profile stud and track roll forming machine consist of :

    3tons single arm decoiler--Guideing device-Main forming system-Auto Non-stop cutting system--Control cabinet.


    Our advanges:

    1)Good and Stable quality
    2) Strong bearing capacity
    3)Non-deforming, fadeless
    4)packing in carton

    5)easily to install

    1.Paintbrush
    2.Durable and handsome
    3.Moisture-resistant
    4.Corrosion protection
    Hot Dipped Galvanized Steel and Aluminum Alloy

    Elegant

    Rust proof

    Fade proof

    Acid & alkali resistant

    Convenient for installation

    Different dimensions can be made as required.


    Main structure adopt independent hard column structure by 30mm thickness but not wall panel welded, with is with higher precision.

    Forming rollers adopt high grade Cr12 but not GCR15 and 45# which gain more higher quality


    2. Technical Details Of Metal Stud And Track Roll Forming Machine(CU/Omega or L type)


    Suitable Raw Material
    MaterialGI GL Aluminum
    Thickness0.4-0.6mm
    Yield Strength235Mpa or 550MPA
    Main Technical Parameters
    Quantity of forming rollers stations10-12 steps
    Diameter of forming rollers shafts50mm full solid
    Roll Forming Speed45m/min without punching
    Forming rollers materialCr12 with heat treatment
    Cutter materialCr12MOV, with quenched treatment
    Controlling systemINVETER
    Electric Power requirementMain motor power: 5.5kw

    Hydraulic unit motor power: 4kw

    Servo motor 1.5kw

    Electric voltage

    According to customer’s requirement

    We can do 208/220/380/415/440V etc please tell me your required voltage.


    Machine Specifications
    WeightAbout 2.8tons
    SizeAbout 4.9M x 0.7Mx1.2M(length x width x height)
    ColorMain color: Grey or as your requirements
    Warning color: yellow

    3. Main Components Of Metal Stud And Track Roll Forming Machine


    Manual Decoiler-3tons1 Set
    Guiding device1 Set
    Main Roll Forming Unit1 Set
    Post Cutting Unit--Non-stop1 Set
    Hydraulic Station1 Set
    PLC Control System1 Set
    Reveiving Table-2m1 Set

    4. Production Flows Of Metal Stud And Track Roll Forming Machine


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)


    oMEGA METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE


    5. Advantages Of Our Metal Stud And Track Roll Forming Machine


    · More than 10 engineers and More than 10 designers with more than 10 years experience


    · We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.


    · Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.


    ·


    6. Application Of The Metal Stud And Track Roll Forming Machine


    This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

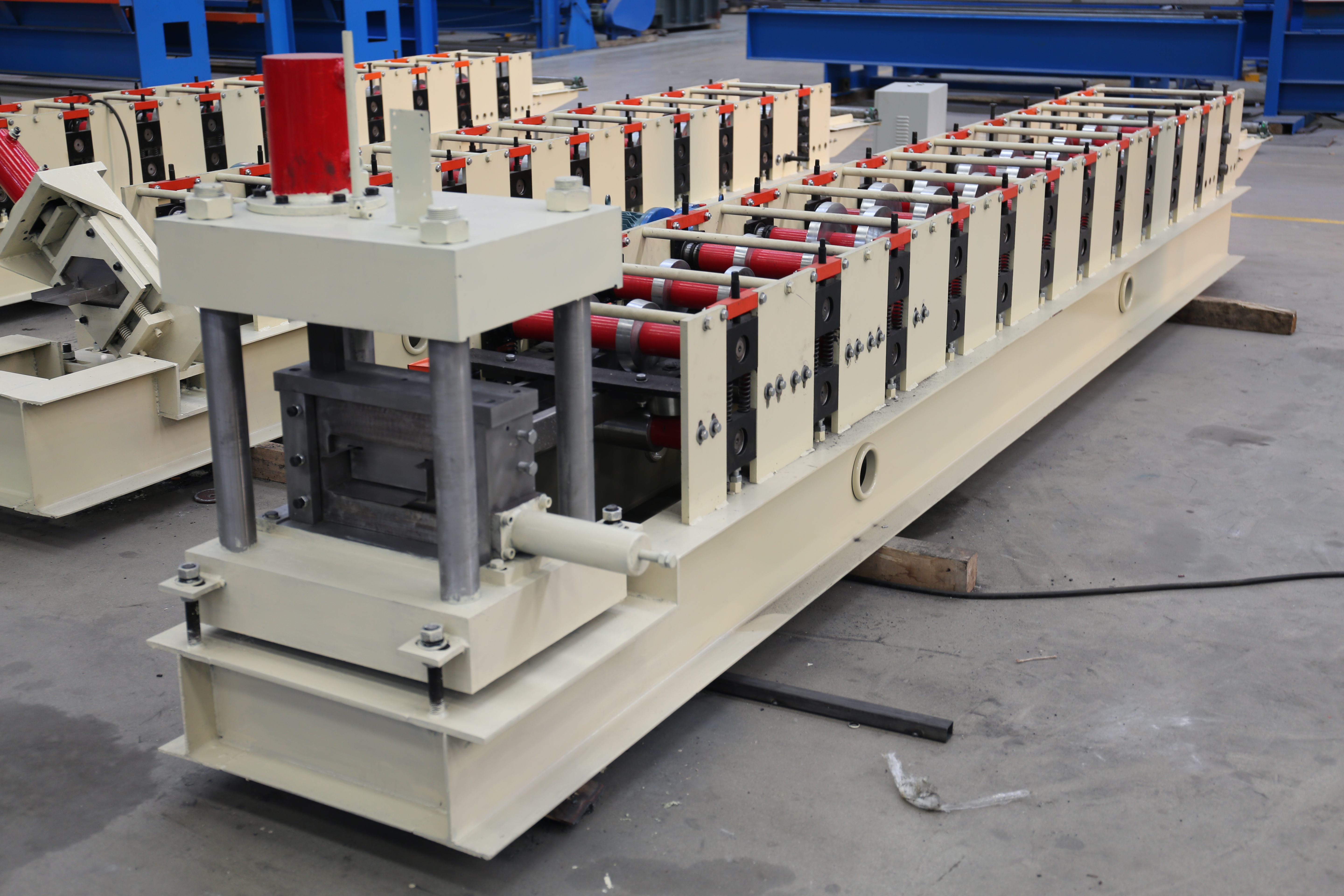

    7. Product photos Our Metal Stud And Track Roll Forming Machine



    oMEGA METAL STUD AND TRACK ROLL FORMING MACHINE METAL STUD FORMING MACHINE


    8. FAQ


    Q: How to visit our company:
    A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

    2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
    3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.


    Q. How to get a quotation?

    A: 1. Give me the profile drawing and the thickness of your material it is very important.

    2. If you have requirements for production speed, power, voltage and brand, please explain in advance.

    3. If you don't have your own profile drawing, we can recommend some models according to your local market standard.


    Q. What's your payment terms and delivery time?

    A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
