    380V Roof Panel Roll Forming Machine Trapezoidal Ibr Roof Machine

    Ask Lasest Price
    Brand Name : JCX
    Model Number : Trapezoidal IBR Roof Panel Roll Forming Machine
    Certification : CE/ISO
    Price : USD7,500-USD9,500 PER SET
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 15 SETS PER MONTH
    Delivery Time : about 30 working days
    • Product Details
    • Company Profile

    380V Roof Panel Roll Forming Machine Trapezoidal Ibr Roof Machine

    Direct Factory Automatic Trapezoidal Metal IBR Wall Roof Panel Roll Forming Machine


    1. Description Of Roof Panel Roll Forming Machine


    The components of the roof panel roll forming machine include: manual decoiler/ electric decoiler/ hydraulic decoiler, main roll forming machine, electric/ hydraulic cutting, plc control system, main motor, pump station, receving table.


    Roof panel roll forming machine popular sell in many countries, Coil width before rolling is 1000mm / 1200mm /1220mm / 1250mm.
    Material common is PPGI GI, material thickness common between 0.3-0.8 mm. Roof panel roll forming machine Include: trapezoidal roofing sheet roll forming machine ,corrugated roofing roll forming machine ,glazed tile roll forming machine and double layer roofing sheet roll forming machine ,ridge cap roll forming machine.


    If you have requirements for production speed, power, voltage and brand, please explain in advance.


    2. Technical Details Of Roof Panel Roll Forming Machine


    Machine Specifications
    WeightAbout 5.4tons
    SizeAbout 6.1M*1.3M*1.2M(length x width x height)
    ColorMain color: bule or as your need
    Warning color: yellow
    Suitable Raw Material
    MaterialGI PPGI GL PPGL
    Thickness0.3-0.8mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations13
    Diameter of forming rollers shafts70mm
    Roll Forming Speed15m/min
    Forming rollers material45# steel, coated with chromed treatment
    Cutter materialCr12MOV, with quenched treatment
    Controlling systemPLC
    Electric Power requirementMain motor power: 4kw
    Hydraulic unit motor power: 4kw
    Electric voltageAccording to customer’s requirement

    3. Main Components Of Roof Panel Roll Forming Machine


    Manual Decoiler1 Set
    Feeding Table1 Set
    Roll Forming Unit1 Set
    Post Cutting Unit1 Set
    Hydraulic Station1 Set
    PLC Control System1 Set
    Reveiving Table1 Set

    4. Production Flows Of Roof Panel Roll Forming Machine

    Decoiler → feeding table (sheet metal is put by guiding platform) → main forming machine → Hydraulic cutting system → Receiving table


    380V Roof Panel Roll Forming Machine Trapezoidal Ibr Roof Machine380V Roof Panel Roll Forming Machine Trapezoidal Ibr Roof Machine


    5. Advantages Of Our Roof Panel Roll Forming Machine

    · More than 10 engineers and More than 10 designers with more than 10 years experience


    · We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.


    · Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.


    · We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.

    6. Application Of Roof Panel Roll Forming Machine


    This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

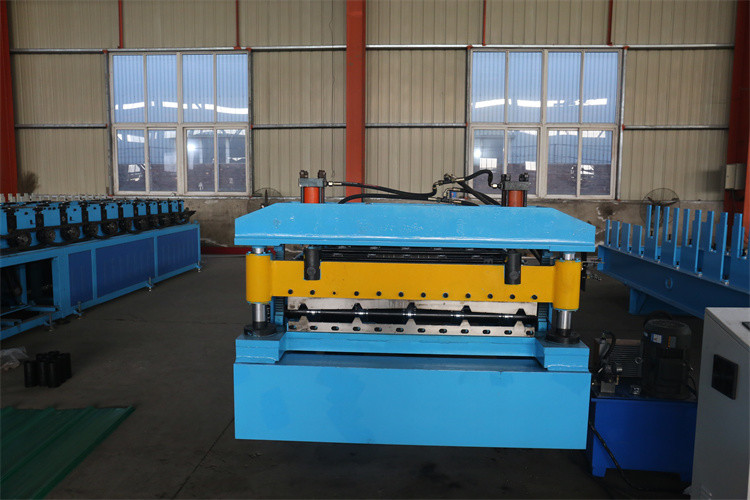

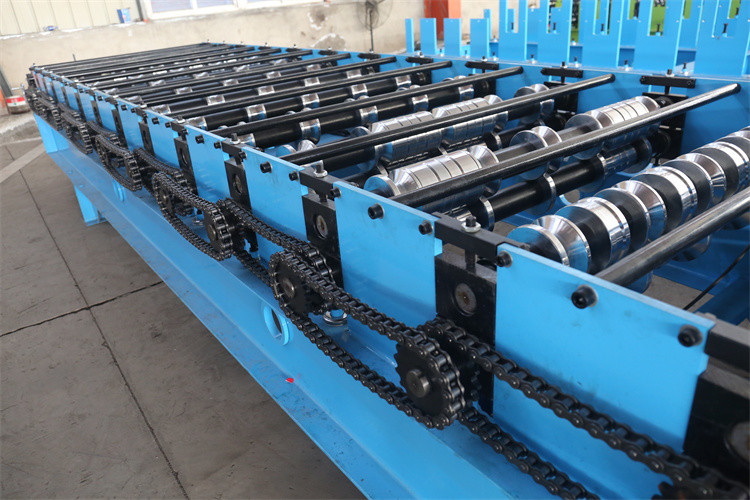

    7. Product photos Our Roof Panel Roll Forming Machine


    380V Roof Panel Roll Forming Machine Trapezoidal Ibr Roof Machine


    380V Roof Panel Roll Forming Machine Trapezoidal Ibr Roof Machine


    380V Roof Panel Roll Forming Machine Trapezoidal Ibr Roof Machine


    8. FAQ


    Q: What I should do if I just start to know roll forming machinery?
    A: Contact us immediately, we provide free consultant pre-sales service.

    Q: How to visit our company?
    A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

    2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
    3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
