JCX is manufacturing high quality guardrail roll forming machines,
and regularly exported to Turkey, Indonesia, Philippines, Malaysia,
India, Angola, etc. With ISO CE certificates and over 13 years
export expearance.

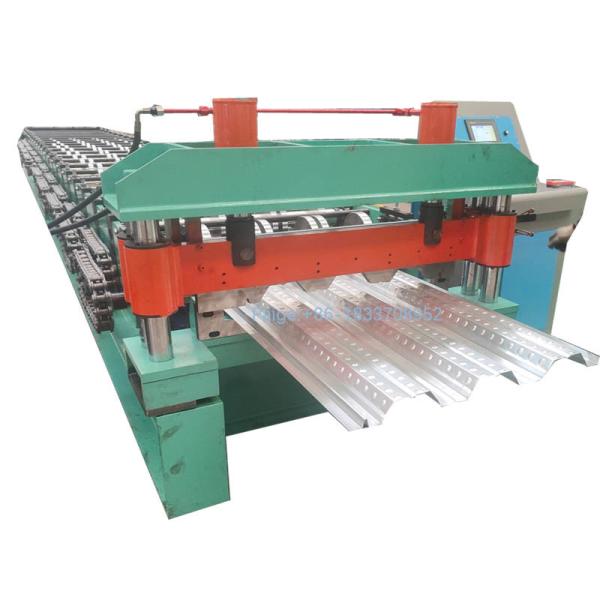

Metal roofing decks are available in a variety of types including
narrow rib, intermediate rib, wide rib, and deep rib, and are used
to support insulation or lightweight concrete and the waterproof
membrane of a roof. Our metal roofing deck is used as a foundation
for flat steel deck, pitched, and arched roof systems because of
their high strength-to-weight ratio of the steel ratio. Metal roof
decking products act alone in transferring horizontal and vertical
loads into the building frame. These metal roofing deck can be left
exposed for open ceiling designs or manufactured with added
acoustical perforations. Additionally, metal roofing decks are
known to provide a solid work surface for the installation of
insulation, weatherproofing, and roofing materials
2. Technical details of door shutter roll forming machine:
| Machine Specifications |
| Weight | About 10tons |
| Size | About 10mx2.2mx1.3m(length x width x height) |
| Color | Main color: blue |
| Warning color: yellow |
| Suitable Raw Material |
| Material | Galvanized Steel Coils |
| Thickness | 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters |
| Quantity of forming rollers stations | 22-25 |
| Diameter of forming rollers shafts8 | 80/90mm |
| Roll Forming Speed | 12-15m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2*11kw |
| Hydraulic unit motor power: 5.5kw |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
| Hydraulic pre cutting system | Optional |
4. Production Flows:
Uncoiling the sheet---Infeed guiding--Embossing shafts----Roll
forming-----Measure length---Cutting the panel--panels to the
supporter (option: automatic stacker)
5. Advantages:
· 5 engineers with more than 20 years experience
· 30 professional technician
· 22 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 2 years maintenance and whole life technical support
