Fully Automatic Blue Color CZ Purlin Roll Forming Machine Max Speed 25m/Min

1. Description of CZ purlin roll forming machine:

Our c/z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.

The Interchangeable C/Z Purlin Roll Forming Machine can produce C shape and Z shape channels, whose shape and size can be quickly changed by press button.

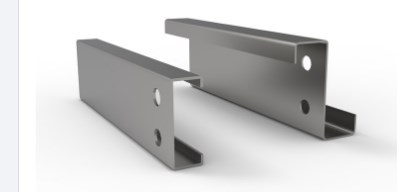

For steel construction projects, people always use C and Z steel purlins (different web sizes and different flange sizes).

First of all, the traditional c/z Purlin Roll Forming Machine can produce many different sizes of cross-section channels (standard: 6 different sizes, from 80-300mm web size, 50-100mm flange size, 15-20mm The size of the support foot changes), but it needs to be manually changed, and it takes at least 2 hours to change the size each time. Therefore, the traditional c/z steel purlin roll forming machine does not work efficiently.

Due to the appearance of the semi-automatic c/z Purlin Roll Forming Machine, the replacement time is greatly shortened.

Using frequency conversion speed regulation, good production stability. Save time, effort, and effort!

2. Profile drawing of CZ Puriln roll forming machine:

3. Technical details of CZ Purlin roll forming machine:

4. Workflow:

De-coiler→Guide→Pre-Cutting→Roll Forming→Punching hole→Cutting→Receiving

5.Main components of CZ purlin roll forming machine

5.1 3tons Manual Uncoiler: 1 Set

5.2: Main of roll forming machine: 1 Set

5.3: Hydraulic motor station: 1 Set

5.4: Hydraulic Cutting device: 1 Set

5.5: Support table: 1 Set

5.6: PLC control cabinet: 1 Set

6.Main features of interchange cz cold rolled purlins machine

7. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

8. FAQ

1. Does one machine can only produce one style panel profile?
Not exactly.For some making machine. It can produce more kinds of panels by change their rollers.
