The most professional roll forming machine and light gauge steel framing roll forming machine manufacturer
3 Years
| Ask Lasest Price | |
| Brand Name : | JCX |
| Model Number : | C89/140 LGS STEEL FRAMING MACHINE |
| Certification : | CE ISO |
| Price : | 43,000-45,000USD/set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000sets per year |
| Delivery Time : | 30-60 days |
d. The control system can add any additional information, such as, company name, logo, websites and so on.
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| Decoiler | max. weight capacity | 3 tons |
| inner diameter | 450-530mm | |
| out diameter | 1300 mm | |
| type | electric decoiler | |
| running method | automatic | |
| Roll forming part | weight | about 3 tons |
| size | 4*0.8*1.8 | |
| total power | 15kw | |
| number of rollers | with 8 groups and 4 groups' correctional rollers | |
| transmission method | gear and chain | |
| brand of main motor | Invet | |
| powerof main motor | 7.5 kw | |
| material of rollers | Cr12 with heat treatment | |
| material of shaft | 40 Cr with vacuum heat treatment | |
| material of cutter | Cr12mov | |
| productivity of machine | 50m/minute with out punching, 0.5-0.6 tons/hour | |
| tolerance of punching hole | +/- 3mm length distance:+/-0.5mm straightness accuracy: 0.3mm | |
| brand of inject printer | SOJET double head printer | |
| highlight | some parts of the machine we make innovation to make make use more long time and more stronger | |
| Control system | Brand of PLC | Delta |
| Brand of speed controller | Delta | |
| design software | Vertex BD | |
| task software | Self development program | |
| Hydraulic system | power | 5.5kw |
| oil tank | 80L | |
| brand of solenoid valve | HUADE | |
| Receiving table | size | 4 meters long |
| After-sale services | warranty | one year |
| training items in China freely | operation training and finished products installation training | |
| machine maintenance | immediate feedback and use real-time communication to solve problems and engineer avaliable to overseas |
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 | C89 Roll Forming Machine | 1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 | |
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Applications:

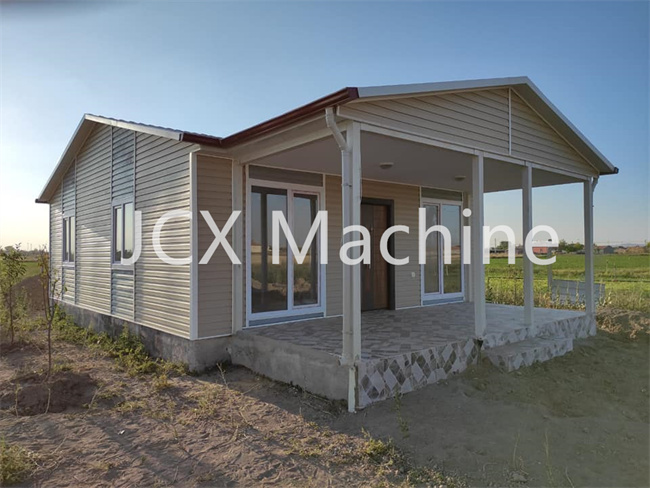

Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
|
|
