The most professional roll forming machine and light gauge steel framing roll forming machine manufacturer
3 Years
| Ask Lasest Price | |
| Brand Name : | JCX |
| Model Number : | C89/140 LGS STEEL FRAMING MACHINE |
| Certification : | CE ISO |
| Price : | 43,000-45,000USD/set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000sets per year |
| Delivery Time : | 30-60 days |
Light gauge steel can replace lumber in residential and light commercial structures. It serves perfectly for load-bearing walls and interior rooms.
However, due to its strength, studs can be 24 inches on center rather than the customary 18 or 20 inches, reducing the number of studs necessary to frame a wall. Framing is quite similar to wood, but very little cutting and sizing need occur at the job site as the studs are manufactured to precise lengths.
Most experienced light gauge framers fasten the parts with self-tapping screws. Because of its light weight, each piece can be carried by hand.
The longer spans means less fastening and faster construction. As a metal, light gauge steel won’t rot, split, warp, shrink twist, burn or become termite food.
Steel framing produces far less on-site waste than wood framing, making debris removal less costly.
Also, since it goes to recycling facilities, the waste can even produce some income to offset project costs.
Total 8 working units, but we can also add punching dies as your requirements.

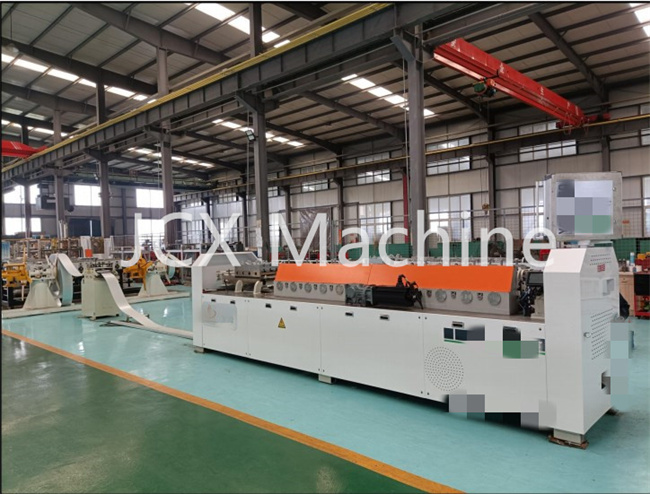

Parameters of c89 lgs framing machine
| C89 Equipment Parameters | |||
| Profile Type | C shape 89*41mm or as customer drawing | Operation System: | Vertex bd software |
| Standard Speed | 50m/min | Main motor power | 7.5kw |
| Product Accuracy | 0.5mm | Total power | 15.2kw |
| Coil width | 178-182mm | Hydraulic volumn | 120L |
| Steel thickness | 0.75-1.2mm | Machine weight | 3050KG |
| Punching dies | Dimple hole, chamfer cut, web notch, lip cut, service hols, swage, shear, bolt hole | ||
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 | C89 Roll Forming Machine | 1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 | |
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Control system:
 Brand of PLC | Mitsubishi |  JAPAN Brand |
| Brand of low voltage/switch/encoder/button | Schneider | FRANCE Brand |
| Design software | Vertex BD | Must VERTEX BD |
| Machine software control | Self development program | We have patent about this technology |
| Can support internet or not | Can support internet | If you need Remote control, please contract me, it needs customized |
Applications:
Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
|
|
