CE ISO Light Gauge Steel Machine 50m/Min Metal Framing Machine

    Buy cheap CE ISO Light Gauge Steel Machine 50m/Min Metal Framing Machine from wholesalers

    Buy cheap CE ISO Light Gauge Steel Machine 50m/Min Metal Framing Machine from wholesalers
    • Buy cheap CE ISO Light Gauge Steel Machine 50m/Min Metal Framing Machine from wholesalers
    • Buy cheap CE ISO Light Gauge Steel Machine 50m/Min Metal Framing Machine from wholesalers

    CE ISO Light Gauge Steel Machine 50m/Min Metal Framing Machine

    Ask Lasest Price
    Brand Name : JCX
    Model Number : C89/140 LGS STEEL FRAMING MACHINE
    Certification : CE ISO
    Price : 43,000-45,000USD/set
    Payment Terms : L/C, T/T
    Supply Ability : 1000sets per year
    Delivery Time : 30-60 days
    • Product Details
    • Company Profile

    CE ISO Light Gauge Steel Machine 50m/Min Metal Framing Machine

    Automatic C89 light gauge steel framing machines metal framing machine for villa
    Product Description
    C70 C89 C92 Light Gauge Steel Framing Machines Metal Framing Machine For Building
    Light Gauge Steel Framing Machine (also named LGS Framing Machine) is for LGS structure houses. The Light Gauge Steel Structure is based on factory made galvanized light gauge steel components produced by the cold forming method assembled as panels at site forming structural steel framework of a building and varying wall and floor construction
    Steel framing produces far less on-site waste than wood framing, making debris removal less costly. Also, since it goes to recycling facilities, the waste can even produce some income to offset project costs.
    Our LGS frame machine advantages:
    1. Speed raise to 50m/min
    2. Memory function: power off and second day can work continue, no waste steel roll.
    3. Two in one decoiler, more stable, save space, better than manual normal type.
    4. Sixth gernation machine, system more stable after several years improvment.
    5. New type print machine, One machine control 2 sets print machine, connecting with computer directly.
    6. Hydrulic station improved, low pressure, but larger power, extended machine life
    As a professtional lgs framing machine maufacture:
    We have various types for C70/C89/C92/C140/C150/C200, besides this we also have mutifunctional machine for two in one or three modes in one.
    We can make machine with your Company Logo as required

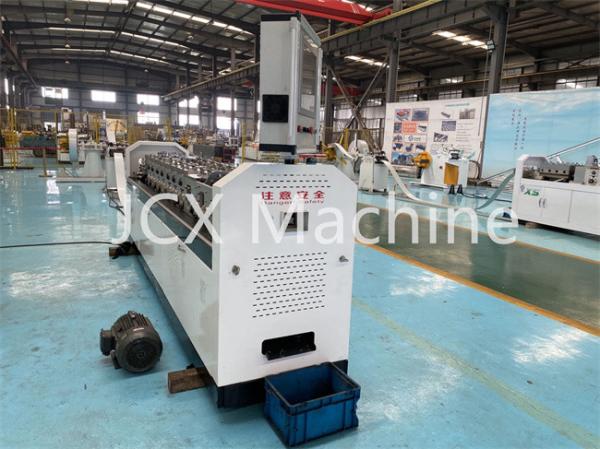

    Machine picture:
    8 working positions (pipeline hole, web hole, small side cutting, fixed hole, chamfering, web shrinkage hole, shearing, bolt hole, etc.)

    1. Model 1 : service holeetc.
    2. Model 2 : web notch
    3. Model 3 : end truss
    4. Model 4 : triple web hole
    5. Model 5 : lip notch
    6. Model 6 : dimple
    7. Model 7 : swage


    Total 8 working units, but we can also add punching dies as your requirements.

    Parameters of c89 lgs framing machine

    C89 Equipment Parameters
    Profile TypeC shape 89*41mm or as customer drawingOperation System:Vertex bd software
    Standard Speed50m/minMain motor power7.5kw
    Product Accuracy0.5mmTotal power15.2kw
    Coil width178-182mmHydraulic volumn120L
    Steel thickness0.75-1.2mmMachine weight3050KG
    Punching diesDimple hole, chamfer cut, web notch, lip cut, service hols, swage, shear, bolt hole
    Components of lgs framing machine:
    NO.DescriptionQuantity (set)Remark
    13 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional1Put coils and straight the coil
    2Transmission and hydraulic system1Induction steel belt
    3

    C89 Roll Forming Machine

    1main machine
    4Double print system11 set, two pcs
    5Control system1
    6Machine Run-Out Table1Drawing, you can produce yourself after you getting the machine
    7Spare parts and tool box1Full sets of necessary spare parts

    Control system:

    CE ISO Light Gauge Steel Machine 50m/Min Metal Framing MachineBrand of PLCMitsubishiCE ISO Light Gauge Steel Machine 50m/Min Metal Framing MachineJAPAN Brand
    Brand of low voltage/switch/encoder/buttonSchneiderFRANCE Brand
    Design softwareVertex BDMust VERTEX BD
    Machine software controlSelf development programWe have patent about this technology
    Can support internet or notCan support internetIf you need Remote control, please contract me, it needs customized

    Applications:


    Our lgs steel framing machine can make house roof, floor, wall, truss all.

    Automatic lubrication system

    Packing & Delivery
    Sea worthy standard package: the LGS Machine will be covered with plastic film, fixed into 20'gp container
    RFQ:
    1. If your machine include software?
    Answer: we can supply machine with or without software, it depends on your requirement.
    2. Do you supply training?
    Answer: yes, will supply clear manual book and guiding videos along with the machine, and we supply lifetime technogly support, any questions, we can open video to help you directly.
    3. How long is the machine warranty?
    Answer: 12 month since the machine departure.
    4. Have you exported this machines abroad?
    Answer: yes, we are leading company and have over 13 years export experance. and this lgs framing machine we have exported to Australia, Greece, Mexico, America, Mogolia etc.
    5. Do you have certifications?
    Answer: Yes, we have CE ISO certificates, which meet the international standards.
    Well your inquiry.
