The most professional roll forming machine and light gauge steel framing roll forming machine manufacturer
3 Years
| Ask Lasest Price | |
| Brand Name : | JCX |
| Model Number : | C89/140 LGS STEEL FRAMING MACHINE |
| Certification : | ISO CE |
| Price : | 43,000-45,000USD/set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000sets per year |
| Delivery Time : | 30-60 days |
Model 1 : service holeetc.
Model 2 : web notch
Model 3 : end truss
Model 4 : triple web hole
Model 5 : lip notch
Model 6 : dimple
Model 7 : swage
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| C89 Equipment Parameters | |||
| Profile Type | C shape 89*41mm | Operation System: | Vertex bd |
| Standard Speed | 50m/min | Main motor power | 7.5kw |
| Product Accuracy | 0.5mm | Total power | 15.2kw |
| Coil width | 17-182mm | Hydraulic volumn | 120L |
| Steel thickness | 0.75-1.2mm | Machine weight | 3000KG |
| Punching dies | Dimple hole, chamfer cut, web notch, lip cut, service hols, swage, shear, bolt hole | ||
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |

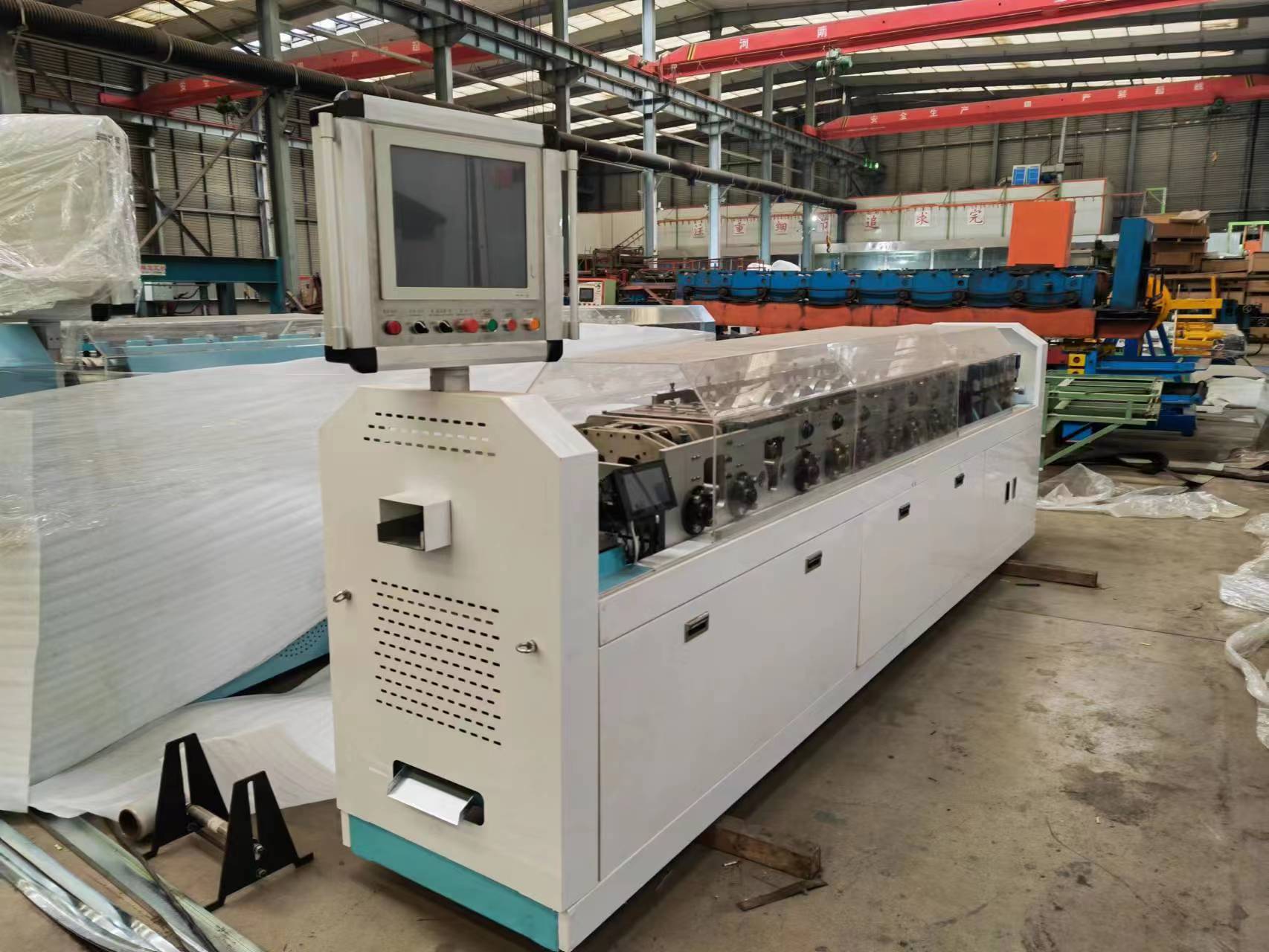

| 3 | C89 Roll Forming Machine | 1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 | |
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Control system:
 Brand of PLC | Mitsubishi |  JAPAN Brand |
| Brand of low voltage/switch/encoder/button | Schneider | FRANCE Brand |
| Design software | Vertex BD | Must VERTEX BD |
| Machine software control | Self development program | We have patent about this technology |
| Can support internet or not | Can support internet | If you need Remote control, please contract me, it needs customized |
Applications:
Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
|
|
