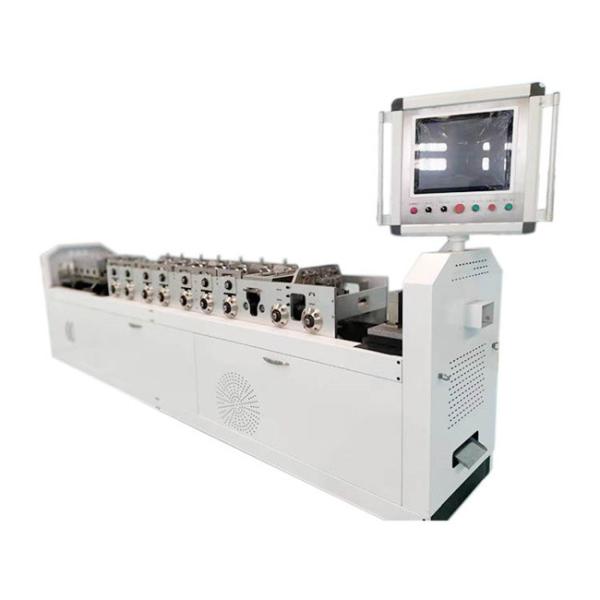

    Villa house vertex BD C89 C140 Light Gauge Steel Framing Machine lgs machine

    Ask Lasest Price
    Brand Name : JCX
    Model Number : Light gauge steel framing machine
    Certification : CE ISO
    Price : USD42000-USD45000 PER SET
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : about 30 working days
    • Product Details
    • Company Profile

    Villa house vertex BD C89 C140 Light Gauge Steel Framing Machine lgs machine

    Villa house vertex BD C89 C140 Light Gauge Steel Framing Machine lgs machine


    1. Description Of light gauge steel framing Machine


    The light gauge steel is suited to construct walls, floors and roofs for 1-3 floors, and light commercial construction. The LGS machine can produce roof trusses at your factory ,also can produce in containers and on construction sites.


    The light gauge steel machine also called:LGS machine ,LGS roll forming machine, LGS making machinery, villa roof sheet machine, light gauge steel frame roll forming machine,this machine has high speed,it can reach to 50-60m/min, and cost-effective frame solution,is very popular in the world.


    If you are interest ,please contact me .


    2. Technical Details Of light gauge steel framing Machine


    Machine Specifications
    WeightAbout 3tons
    SizeAbout 4m*0.8mm*1.8m(length x width x height)
    ColorMain color: Red or as your requirements
    Warning color: yellow
    Suitable Raw Material
    MaterialGI GL Aluminum
    Thickness0.75-1.2mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stationswith 8 Groups and 4 Groups' Correctional Rollers
    Diameter of forming rollers shafts50mm
    Roll Forming Speed50-60m/min
    Forming rollers materialCr12 with Heat Treatment
    Cutter materialCr12MOV
    Controlling systemPLC
    Electric Power requirementMain motor power: 7.5kw
    Electric voltageAccording to customer’s requirement

    3. Main Components Of light gauge steel framing Machine


    Manual Decoiler1 Set

    automatic material leveling part

    1 Set
    Roll Forming Unit1 Set
    Punching Unit1 Set
    Cutting device1 Set
    Vertex bd1 Set
    Reveiving Table1 Set

    4. Production Flows Of LIGHT GAUGE STEEL FRAMING Machine


    Uncoiling the sheet--Punching -Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)


    Villa house vertex BD C89 C140 Light Gauge Steel Framing Machine lgs machine


    5. Advantages Of light gauge steel framing Machine


    1. More efficiently and accurately produce the light gauge steel frame;
    2. High equipment reliability;
    3. Fully automatic production, saving raw materials;
    4. High capacity;
    5. Long use time, lifetime service
    6.Easy to operate, increase productivity


    6. Application Of The light gauge steel framing Machine


    This machine is widely used in the production of the metal roof sheets and wall panel.villa,. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.


    7. Product photos Our light gauge steel framing


    Villa house vertex BD C89 C140 Light Gauge Steel Framing Machine lgs machine

    Villa house vertex BD C89 C140 Light Gauge Steel Framing Machine lgs machineVilla house vertex BD C89 C140 Light Gauge Steel Framing Machine lgs machine


    FAQ


    Q: What is your payment terms?
    A: We accept 30% T/T as deposit and 70% T/T as balance before shipping.
    We accept 100% L/C at sight
    We accept Western Union payments.
    Other payment terms you want to pay, please let me know and i will check and reply you.


    Q: Do you provide training for my workers?

    A: Yes.Of course

    The machine has been installed and tested well before shipping. It is easy to operate.

    Normally speaking, our customer follows the instruction book and can operate the machine well.?

    You can also come to our factory to check the machine and learn how to operate before shipping.

    If you need our engineer to your factory, we will send


    Q: How about your after-sale service?
    A: We provide 12 months free warranty and free technical support for the whole life about the glazed tile forming machine. During warranty period, if the mahcine parts broken, we can send the new ones freely.



    Welcome to inquiry me.
