The most professional roll forming machine and light gauge steel framing roll forming machine manufacturer
3 Years
| Ask Lasest Price | |
| Brand Name : | JCX |
| Model Number : | C89/140 LGS STEEL FRAMING MACHINE |
| Certification : | CE ISO |
| Price : | 43,000-45,000USD/set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000sets per year |
| Delivery Time : | 30-60 days |
The studs and racks which are produced by the Light Gauge Steel Framing Machine are light, and allow quick building without heavy tools or equipment. Every component can easily be carried by hand - a house is like a carpentry job on a larger scale. The main tool is a light, handheld screw gun. Since steel is strong, LGS structures are lighter than wood framed structures of equivalent strength.
Fast speed: normal speed is 300-700/hour, max speed can reach 2800m/hour
High accuracy: the punching hole accuracy is +/-0.5mm
High stability: continuous working without jam
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| C89 equipment basic parameters | |
| Suitable material | G300-G550 zinc plated, aluminum-zinc plated |
| Material thickness | 0.75-1.2mm |
| Material width | 182mm |
| Maximum line velocity | Approx 2800m/h |
| General production efficiency | 300-700 m/h |
| Main unit power | 7.5Kw |
| Voltage | 380V/50Hz/3phase |
| Hydraulic power | 5.5Kw |
| Equipment total power | 14.5Kw |
| Hydraulic cylinder volume | 120L |
| Main unit remote control | Standard mode |

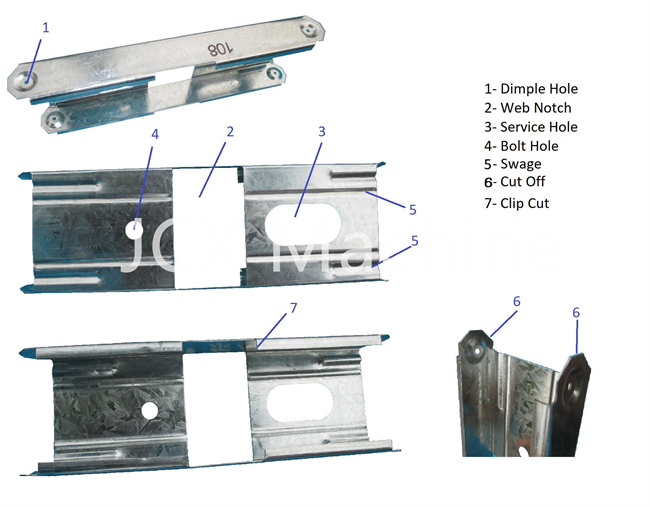

| Punching dies | Dimple hole, chamfer cut, web notch, lip cut, Service hole, swage, shear, bolt hole |
| Dimple accuracy | +/-0.5mm |
| Ink jet printer | Standard (custom according to buyer’s requirement) |
| Machine size | About 4.0m*1.0m*1.5m |
| Machine weight | About 3050kg |
| Machine color | Blue, Orange, Green, Black (can be custom) |
| Decoiler | Power: 1.5kw, loading weight:2000kg, Auto decoiling |
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 | C89 Roll Forming Machine | 1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 | |
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Control system:
 Brand of PLC | Mitsubishi |  JAPAN Brand |
| Brand of low voltage/switch/encoder/button | Schneider | FRANCE Brand |
| Design software | Vertex BD | Must VERTEX BD |
| Machine software control | Self development program | We have patent about this technology |
| Can support internet or not | Can support internet | If you need Remote control, please contract me, it needs customized |
Applications:
Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
|
|
