The most professional roll forming machine and light gauge steel framing roll forming machine manufacturer
3 Years
| Ask Lasest Price | |
| Brand Name : | JCX |
| Model Number : | C140 LGS FRAMING MACHINE |
| Certification : | ISO CE |
| Price : | 42,000-48,000USD/set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000sets per year |
| Delivery Time : | 30-60 days |

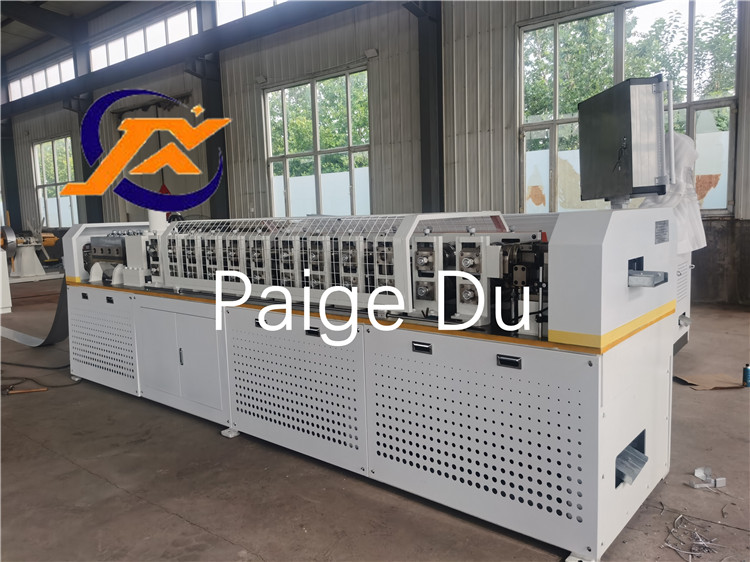

Fast construct large span C140 light gauge steel frame machine for animal husbandry building
Our C140 LGS Framing machine can use to make villa house from 1-8 floors. It also used in moden animal husbandry, Industrial plant construction etc.
Green Building is more and more popuar, as a trend all over the world. It's fast, eco-friendly than traditonal construction, and Fast installation.
Our C140 LGS FRAMING MACHINE ADVATANGES:
Final channel
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| No. | Item | Description |
| 1 | Frame and punching dies | Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
| 2 | Suitable Material | G300-G550Galvanzied coils or Aluzinc |
| 3 | Thickness | 0.75-1.2mm( CAN ENLARGE TO 2mm) |
| 4 | Size | 140*41mm |
| 5 | Feeding material width | 230mm |
| 6 | Standard Producing speed | 300-700m/h |
| 7 | Max producing speed | 1500m/h |
| 8 | Main motor | 7.5kw INVT BRAND |
| 9 | Hydraulic station | 5.5kw |
| 10 | Voltage | 380V 50Hz 3phases or customized |
| 11 | Hydraulic tank capacity | 120L. ensure over 50% |
| 12 | Hydraulic station | Vane pump.more stable, and low pressure with high strength |
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 | C89 Roll Forming Machine | 1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 | |
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Applications:
Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
|
|
