    High Speed Metal Light Steel Keel Stud And Track Machine For Drywall

    Ask Lasest Price
    Brand Name : JCX
    Model Number : Stud And Track Roll Forming Machine
    Certification : CE/ISO
    Price : USD7500-USD9000 PER SET
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : about 30 working days
    • Product Details
    • Company Profile

    High Speed Metal Light Steel Keel Stud And Track Machine For Drywall

    High speed metal light steel keel stud and track machine For Drywall


    1. Description Of Stud And Track Roll Forming Machine


    The light steel keel sheet has two types:Ceiling channel and drywall channel,They are made by this machine. Ceiling keel and wall channel has light-weight, high-intensity, good-antisepsis and other advantages.They mainly match to paperbacked plasterboard and other goods,also the other plates such as GRC, FT and so on.They are widely used in construction of hotels, airport terminal buildings, stations, playgrounds, etc.This machine is produces light steel keel, the cutting adopts non stop cutting system,it has fast speed, the ordinary speed is 40M/min, the maximum speed can reach 100M/min, which greatly improves the production efficiency.


    If you have requirements for production speed, power, voltage and brand, please explain in advance.


    2. Technical Details Of Stud And Track Roll Forming Machine


    Machine Specifications
    WeightAbout 2.5tons
    SizeAbout 5M x 0.8Mx1.2M(length x width x height)
    ColorMain color: Red or as your requirements
    Warning color: yellow
    Suitable Raw Material
    MaterialGI GL Aluminum
    Thickness0.8-1.5mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations12 stations
    Diameter of forming rollers shafts50mm
    Roll Forming Speed40m/min
    Forming rollers material45# steel, coated with chromed treatment
    Cutter materialCr12MOV, with quenched treatment
    Controlling systemPLC control
    Electric Power requirementMain motor power: 5.5kw
    Hydraulic unit motor power: 4kw
    Electric voltageAccording to customer’s requirement

    3. Main Components Of Stud And Track Roll Forming Machine


    Manual Decoiler1 Set
    Feeding Table1 Set
    Roll Forming Unit1 Set
    Post Cutting Unit1 Set
    Hydraulic Station1 Set
    PLC Control System1 Set
    Reveiving Table1 Set

    4. Production Flows Of Stud And Track Roll Forming Machine


    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)


    High Speed Metal Light Steel Keel Stud And Track Machine For Drywall


    5. Advantages Of Our Metal Stud And Track Roll Forming Machine


    · More than 10 designers with more than 10 years experience


    · We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.


    · Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.


    · Our workshop area of 25,000 square meters


    · We more carefully to deal with the details. our rollers and shafts, we process 3 times.


    6. Application Of The Metal Stud And Track Roll Forming Machine


    This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

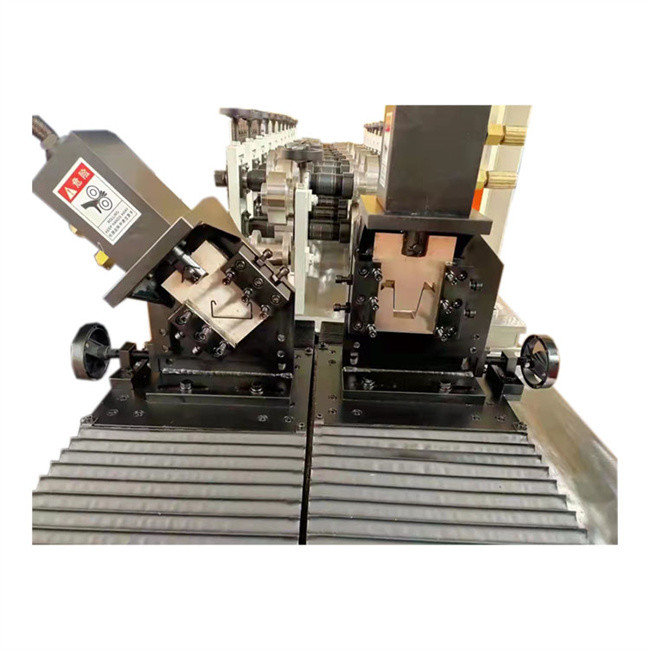

    7. Product photos Stud And Track Roll Forming Machine

    High Speed Metal Light Steel Keel Stud And Track Machine For DrywallHigh Speed Metal Light Steel Keel Stud And Track Machine For DrywallHigh Speed Metal Light Steel Keel Stud And Track Machine For DrywallHigh Speed Metal Light Steel Keel Stud And Track Machine For Drywall


    8. FAQ


    Q: How to visit our company:
    A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

    2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
    3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.


    Q. What is your payment terms?
    A.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
    2 : We accept 100% L/C at sight
    3: We accept Western Union payments.
    4 : Other payment terms you want to pay, please let me know and i will check and reply you.
