    Customized Double Layer Roll Forming Machine Automatic 380V 60Hz 3P

    Ask Lasest Price
    Brand Name : JCX
    Model Number : Double layer Roll Forming Machine
    Certification : ISO9001 CE
    Price : USD8000-USD12500 PER SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Customized Double Layer Roll Forming Machine Automatic 380V 60Hz 3P

    JCX 2022 new product customized double layer roll forming machine for trapezoidal panel and corrugated panel


    1. Double layer roll forming machine


    Famous brand PLC control ibr trapezoidal ribtype and corrugated iron roof sheet making double layer roll forming machine details :
    1.This ibr trapezoidal and corrugated iron roof sheet making double layer roll forming machine details is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
    2.The ibr trapezoidal and corrugated iron roof sheet making double layer roll forming machine is stable,no noise,no shake.
    3.Our ibr trapezoidal and corrugated iron roof sheet making double layer roll forming machine can uses galvanized steel sheet, colored armor plate or galvalume plate as the material plate.
    4. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.

    2. Technical details of double layer roll forming machine


    NO.ItemParameter
    1materialcolor steel/galvanized steel/aluminium(if G550 please check with us)
    2feeding widthas customers' request
    3material thinkness0.3-0.8mm or as customers' request
    4machine size6.8*1.5*1.9m
    5machine weight5.2T
    6voltage requirement380V60Hz3P
    7working speed10-15m/min
    8machine base350# steel welded
    9FrameSteel plate screwed
    10forming steps11steps
    11rollers45# steel with quenching HRC 40-45℃
    12shaft45#steel,diameter 80mm
    13transmission1inch chain or gear
    14PLCDelta
    15motor4kw
    16pump4kw
    17cutterCr12 HRC 58-62℃
    18after-sale service24h*7days*1year’s on line and engineer service overseas
    19warranty1year

    3. Main components of double layer roll forming machine


    Double layer roll forming machine
    Name
    Quantity
    Units
    5T manual uncoiler (Hydraulic uncoiler)
    1
    Set
    Adjustable feeding platform
    1
    Set
    Roll forming system
    1
    Set
    Plc cut to length
    1
    Set
    Hydraulic system
    1
    Set
    Delta Electronic Control System
    1
    Set
    Supporter/Automatic Stacker
    1
    Set

    4. Production Flows

    Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)



    5. Advantages


    · Germany COPRA software design


    · 5 engineers with more than 20 years experience


    · 30 professional technician


    · 20 sets advanced CNC production lines on site


    · Passionate Team


    · Installation engineers can reach your factory within 6 days


    · 1.5 years maintenance and whole life technical support


    6. Application


    The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

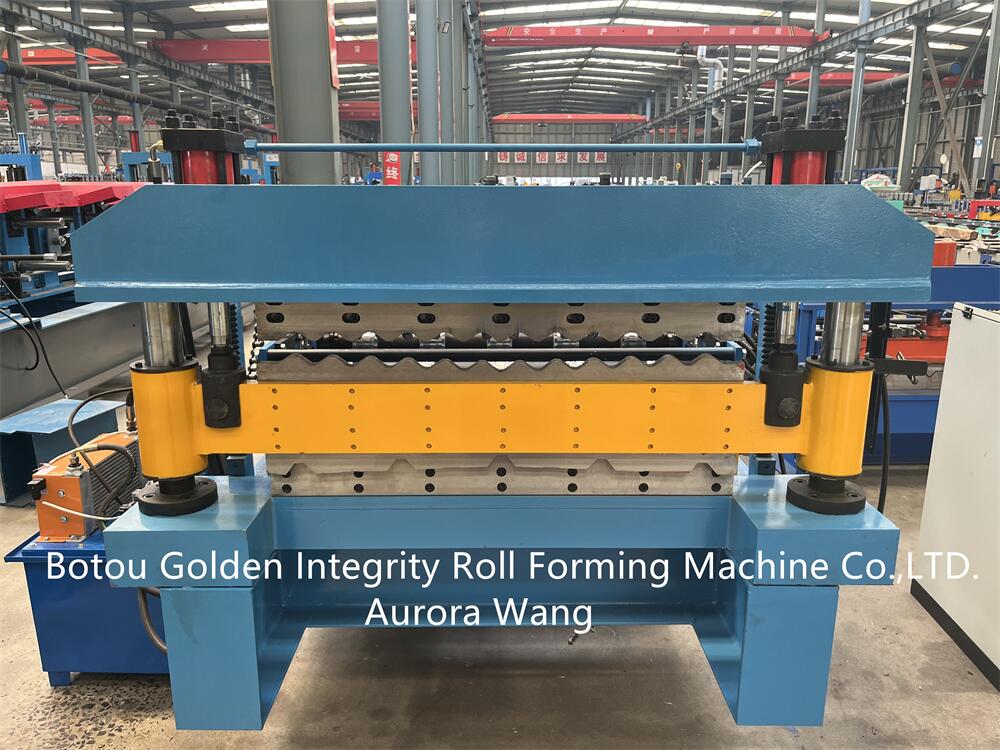

    7. Product photo
