High Efficiency Double Layer Roll Forming Machine , IBR Sheet Roll Forming Machine
1. Double layer roll forming machine
This kind of double layer roll forming machine is designed to produce two different kinds of metal sheets. One is IBR Sheet, another one is Corrugated Sheet.
However, the two layers of the roll forming parts cannot work at the same time, which means each one of the roll forming systems (top roll forming and bottom roll forming) will stop when the other is working.
The two-layer or two levels roll forming parts share the same motor and the change of running between the top and bottom roll forming part is made through a clutch equipped on this double layer roll forming machine.
2. Technical Parameters of IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine
Suitable Material | Type | GI Coil, PPGI & PPGL Coil |
| Thickness | 0.3-0.8mm | |
| Wide | 1000/1250mm | |
| Yield Strength | 550Mpa max | |
Power Specs | Voltage | 380V/3PH/50HZ |
| Main Motor | 7.5kw | |
| Hydraulic motor | 4kw | |
| Hydraulic pressure | 10-12MPa | |
Machine Specs | Forming steps number | 16~20 steps |
| Shaft Material | No.45 steel. Quenched. Diameter: 70mm | |
| Roller Material | No. 45 steel, coated with hard chrome | |
| Main machine body | 350# H steel welded | |
| Transmission | Chain and Sprocket, chain size 1.5 inch | |
| Wall Plate | 20mm thickness | |
| Blade material | Cr12 mould steel with quenched treatment 60-62 | |
| Forming Speed | 0-12m/min for standard solution |
3. Main components of double layer roll forming machine
Double layer roll forming machine | ||
Name | Quantity | Units |
5T manual uncoiler (Hydraulic uncoiler) | 1 | Set |
Adjustable feeding platform | 1 | Set |
Roll forming system | 1 | Set |
Plc cut to length | 1 | Set |
Hydraulic system | 1 | Set |
Delta Electronic Control System | 1 | Set |
Supporter/Automatic Stacker | 1 | Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. features of the IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine
1). This roll forming machine can roll form metal roofing sheet.
After roll formed by this roll forming machine, the surface will be
very smooth and beautiful without any scratch on the surface.
2). Roll forming process: uncoiler, roll forming, forming step
effect, cut to length.
3). Fully Automatic Control System with PLC.
4). Easy operation: Key in the length and quantity on the control
panel.
5). 18 months warranty.
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

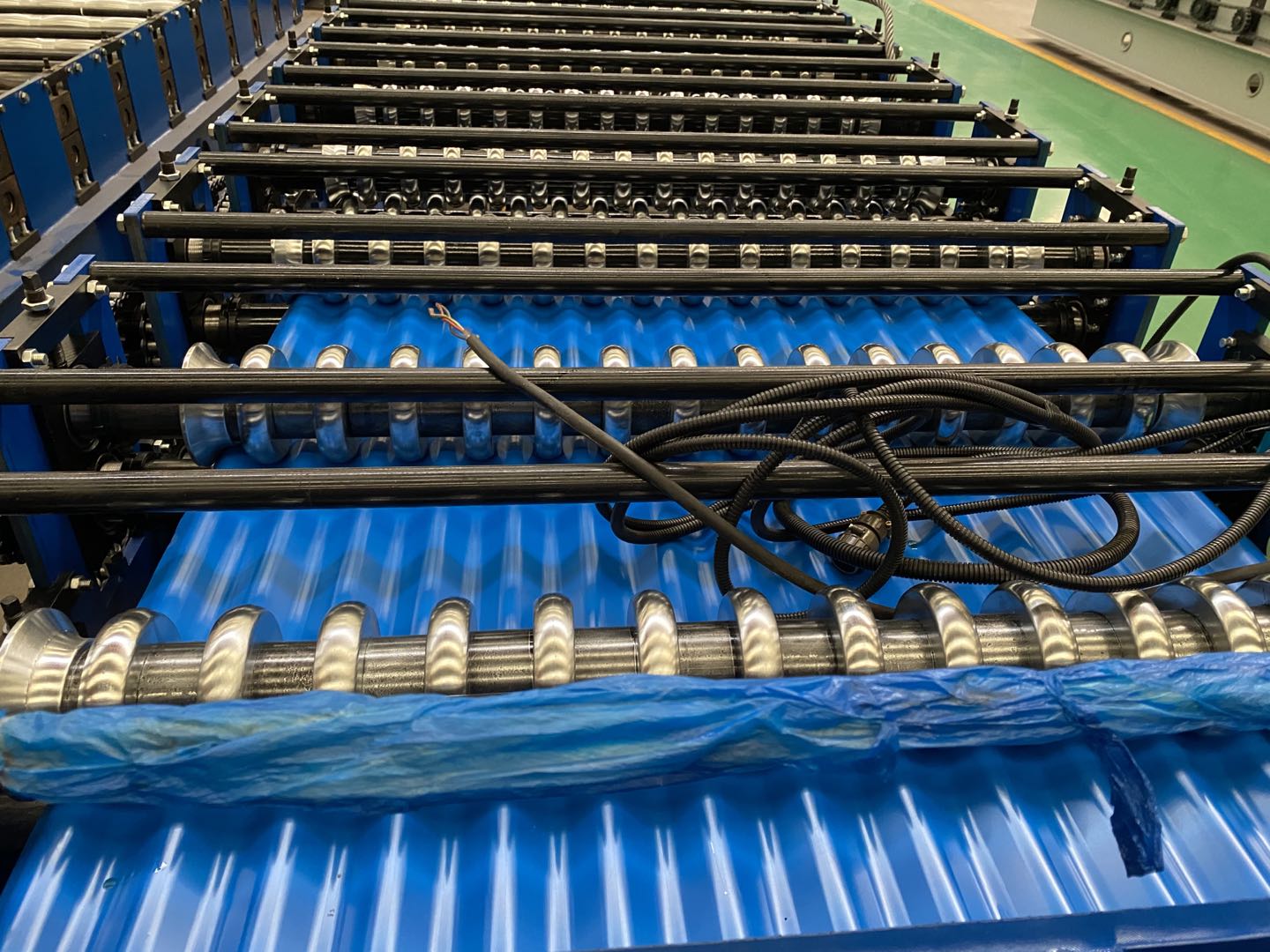

7. Product photo
